Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 70248539
Ceratizit Material Number: 11061587
Product discontinued! Unavailable if out of stock.
The replacement OEM part number is 7024871400, use this number in the product search or:
Please contact us for details on the replacement for this item.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

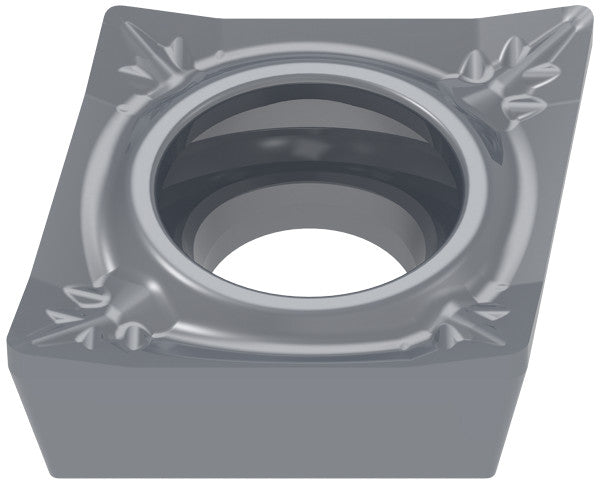

| Name | Ceratizit CCGT 09T302FN-25P AMZ 70248539 | |
| EDP # | 0661400 | |
| Weight (1 pc.) | 0.2 oz | 4.7 g |
| designation | 09T302FN | |
| Corner radius / RE | 0.0079' | 0.200 mm |
| Cutting edge length / L | 0.3819' | 9.700 mm |
| Insert thickness / S | 0.1563' | 3.970 mm |
| Fixing hole diameter / D1 | 0.1732' | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748' | 9.520 mm |
| Chip breaker (Ceratizit) / CBMD | -25P | |
| Coating name / Grade (Ceratizit) / COATN | AMZ | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
