Description
Note that this item has been discontinued and will not be re-stocked.
ISO: CCGT 060202L CWC06 ANSI: CCGT 21.5.5L CWC06 CARBIDE TURNING INSERT
Mat No: 7029685000, Article No: 70296850
This product comes in packages of 10
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

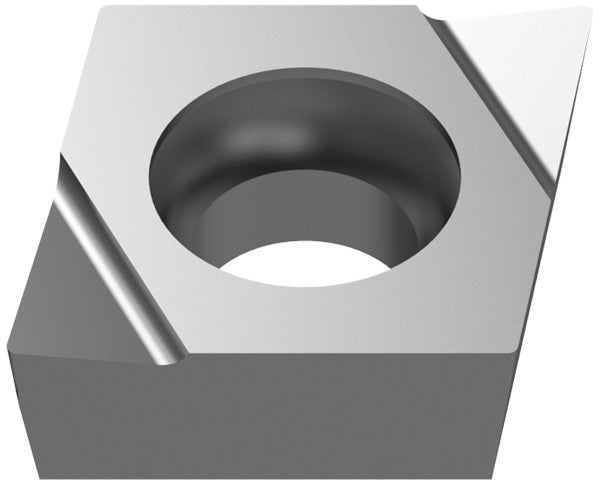

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT ISO: CCGT 060202L CWC06 ANSI: CCGT 21.5.5L CWC06 CARBIDE TURNING INSERT 7029685000 (0661419) | |
| EDP # | 0661419 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.1 oz | 1.7 g |
| designation ISO | 060202L | |
| Corner radius RE/r | 0.0079 inch | 0.2 mm |
| Cutting edge length L/l | 0.252 inch | 6.4 mm |
| Insert thickness S/s | 0.0937 inch | 2.38 mm |
| Fixing hole diameter D1/d1 | 0.1102 inch | 2.8 mm |
| Inscribed circle diameter IC/d | 0.25 inch | 6.35 mm |
Application & Properties:
Suitable Materials:
