Ceratizit CCGT 060204FN_A3-CB2 CTDPS30 CoreLine PCD Turning indexable Insert 71301204 (0661478)
Ceratizit CCGT 060204FN_A3-CB2 CTDPS30 CoreLine PCD Turning indexable Insert 71301204 (0661478)
Couldn't load pickup availability
Ceratizit Article Number: 71301204
Ceratizit Material Number: 12551308
Ceratizit Komet Number (Unpacked): 12551 308
Ceratizit Komet Number (Packed): 12551308
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

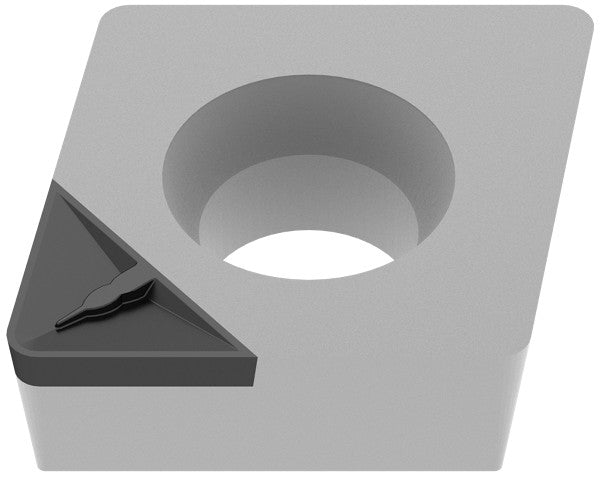

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CCGT 060204FN_A3-CB2 CTDPS30 CoreLine PCD Turning indexable Insert 71301204 | |
| EDP # | 0661478 | |
| Weight (1 pc.) | 0.1 oz | 2.3 g |
| designation | 060204FN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.2520" | 6.400 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 21.51FN | ||
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.1260" | 3.200 mm |
| Size | 6.0000" | 152.400 mm |
| Designation | CCGT 060204FN | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | -CB2 | |
| Coating name / Grade (Ceratizit) / COATN | CTDPS30 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
