Ceratizit CCGT 120408FN_A4-CB2 CTDPS30 CoreLine PCD Turning indexable Insert 71301228 (0661484)
Ceratizit CCGT 120408FN_A4-CB2 CTDPS30 CoreLine PCD Turning indexable Insert 71301228 (0661484)
Couldn't load pickup availability
Ceratizit Article Number: 71301228
Ceratizit Material Number: 12551314
Ceratizit Komet Number (Unpacked): 12551 314
Ceratizit Komet Number (Packed): 12551314
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

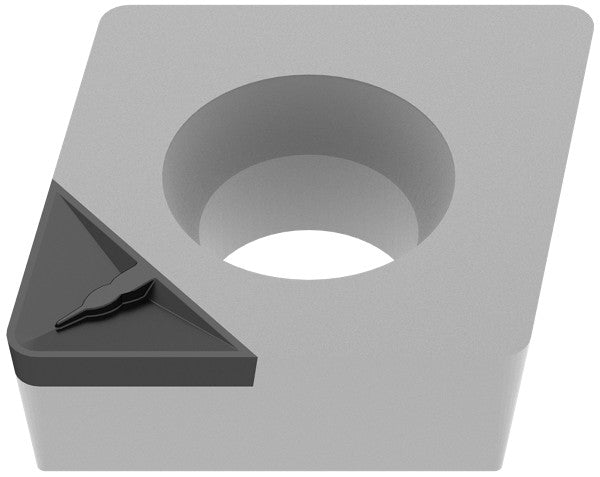

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CCGT 120408FN_A4-CB2 CTDPS30 CoreLine PCD Turning indexable Insert 71301228 | |
| EDP # | 0661484 | |
| Weight (1 pc.) | 0.4 oz | 12.2 g |
| designation | 120408FN | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.5079" | 12.900 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2165" | 5.500 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 432FN | ||
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.1614" | 4.100 mm |
| Size | 12.0000" | 304.800 mm |
| Designation | CCGT 120408FN | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | -CB2 | |
| Coating name / Grade (Ceratizit) / COATN | CTDPS30 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
