Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 7112425000
Ceratizit Material Number: 14443252
Ceratizit Komet Number (Unpacked): 14443 252
Ceratizit Komet Number (Packed): 14443252
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

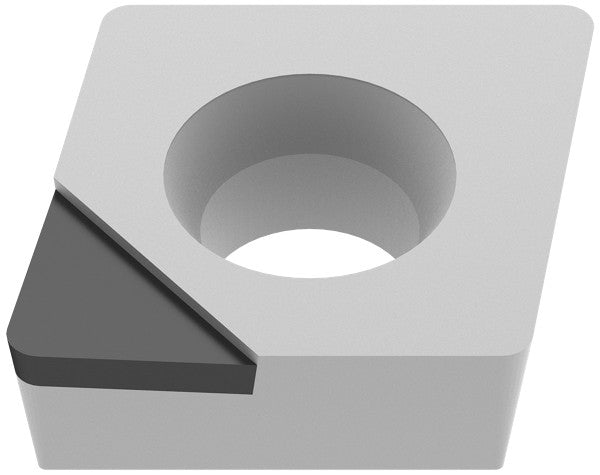

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CCGT 09T302FN_A3 CTBS10U 7112425000 | |
| EDP # | 0661515 | |
| Workpiece Material(s) | Cast Iron (Red) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| designation | 09T302FN | |
| Corner radius / RE | 0.0079' | 0.200 mm |
| Cutting edge length / L | 0.3819' | 9.700 mm |
| Insert thickness / S | 0.1563' | 3.970 mm |
| Fixing hole diameter / D1 | 0.1732' | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748' | 9.520 mm |
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.1339' | 3.400 mm |
| Insert index count / NOI | 1 | |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTBS10U | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
