Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Material Number: 14443347
Ceratizit Article Number: 7143040000
Ceratizit Komet Number (Unpacked): 14443 347
Ceratizit Komet Number (Packed): 14443347
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

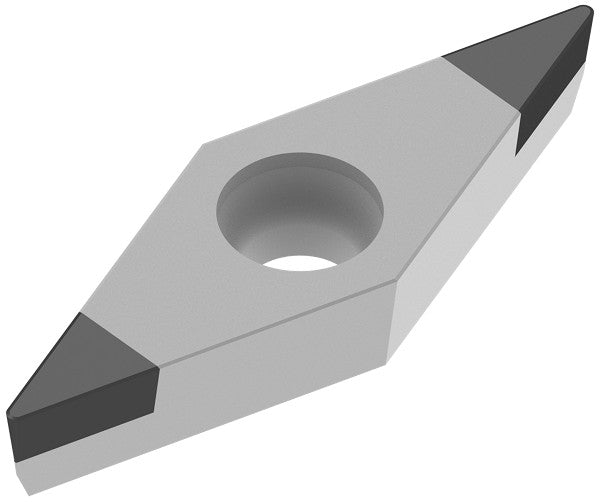

| Name | Ceratizit VCGW 110302FN_B4 CTBH21U Indexible Insert 14443347 | |
| EDP # | 0661526 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 0.1 oz | 3.8 g |
| designation | 110302FN | |
| Corner radius / RE | 0.0079' | 0.200 mm |
| Cutting edge length / L | 0.4370' | 11.100 mm |
| Insert thickness / S | 0.1252' | 3.180 mm |
| Fixing hole diameter / D1 | 0.1142' | 2.900 mm |
| Inscribed circle diameter / IC | 0.2500' | 6.350 mm |
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.1378' | 3.500 mm |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
