Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Material Number: 14443308
Ceratizit Article Number: 7142920000
Ceratizit Komet Number (Unpacked): 14443 308
Ceratizit Komet Number (Packed): 14443308
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

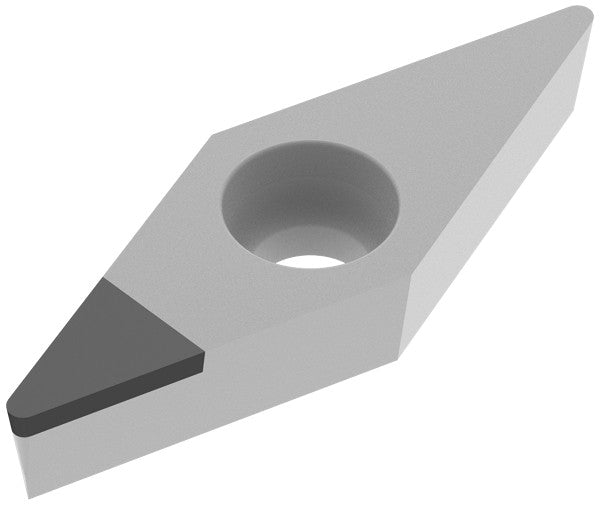

| Name | Ceratizit VCGW 110302TN-012C_A5 CTBS20U Indexible Insert 14443308 | |
| EDP # | 0661533 | |
| Workpiece Material(s) | Cast Iron (Red) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| designation | 110302TN | |
| Corner radius / RE | 0.0079' | 0.200 mm |
| Cutting edge length / L | 0.4370' | 11.100 mm |
| Insert thickness / S | 0.1252' | 3.180 mm |
| Fixing hole diameter / D1 | 0.1142' | 2.900 mm |
| Inscribed circle diameter / IC | 0.2500' | 6.350 mm |
| support chamfer angle / GB | 15 ° | |
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.1850' | 4.700 mm |
| Face land width / BN | 0.0047' | 0.120 mm |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
