Description
Ceratizit Article Number: 70191602
Ceratizit Material Number: 11166918
Ceratizit Komet Number (Unpacked): 59599 02662
Ceratizit Komet Number (Packed): 5959902662
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

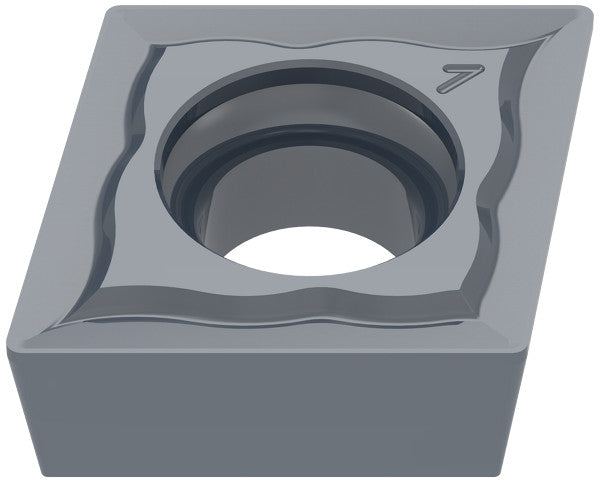

| Name | Ceratizit CCGT 060201FN-F23 CTP2120 70191602 | |
| EDP # | 0661541 | |
| Weight (1 pc.) | 0.1 oz | 2.3 g |
| Product-Carbon-Footprint | E | |
| designation | 060201FN | |
| Corner radius / RE | 0.0039" | 0.100 mm |
| Cutting edge length / L | 0.2520" | 6.400 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| Insert index count / NOI | 2 | |
| Chip breaker (Ceratizit) / CBMD | -F23 | |
| Coating name / Grade (Ceratizit) / COATN | CTP2120 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
