Description
Ceratizit Article Number: 71301304
Ceratizit Material Number: 12551315
Ceratizit Komet Number (Unpacked): 59601 00207
Ceratizit Komet Number (Packed): 5960100207
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

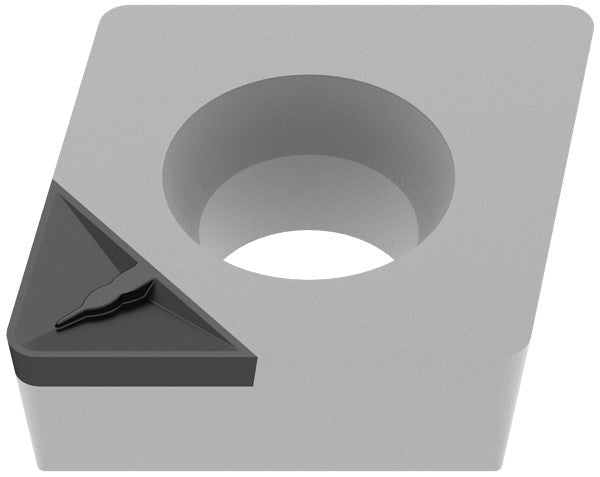

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

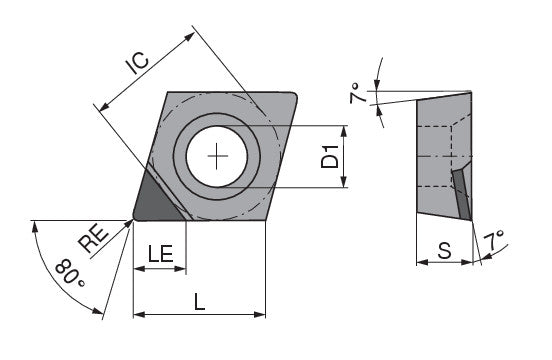

| Properties | ||
|---|---|---|
| Name | Ceratizit CCGT 060204FN_A2-CB2 CTDCD10 71301304 | |
| EDP # | 0661547 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| designation | 060204FN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.2520" | 6.400 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.0866" | 2.200 mm |
| Insert index count / NOI | 1 | |
| Chip breaker (Ceratizit) / CBMD | -CB2 | |
| Coating name / Grade (Ceratizit) / COATN | CTDCD10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
