Description
WTX-VA.19,35.R.3D.HA TI700 SOLID CARBIDE TWIST DRILL
Mat No: 1073199300, Article No: 10731993
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
Solid Carbide Twist Drill
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WTX-VA.19,35.R.3D.HA TI700 SOLID CARBIDE TWIST DRILL 1073199300 (0662031) | |
| EDP # | 0662031 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) | |
| Weight | 0.0 oz | 0 g |

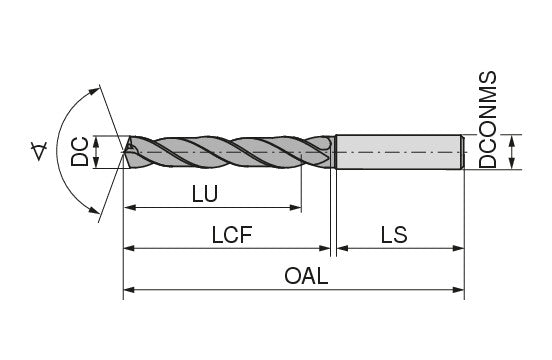

| Cutting diameter DC/d1 m7 | 0.7618 inch | 19.35 mm |
| Overall length OAL/l1 | 5.1575 inch | 131 mm |
| Length chip flute LCF/l2 | 3.1102 inch | 79 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.7874 inch | 20 mm |
| Shank length LS/l4 | 1.9685 inch | 50 mm |
| Usable length LU/l3 | 2.1654 inch | 55 mm |
Application & Properties:
Suitable Materials:
