Description
WTX-VA.9,35.R.3D.HA TI700 SOLID CARBIDE TWIST DRILL
Mat No: 1073193000, Article No: 10731930
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
Solid Carbide Twist Drill
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WTX-VA.9,35.R.3D.HA TI700 SOLID CARBIDE TWIST DRILL 1073193000 (0662094) | |
| EDP # | 0662094 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) | |
| Weight | 2.6 oz | 74 g |

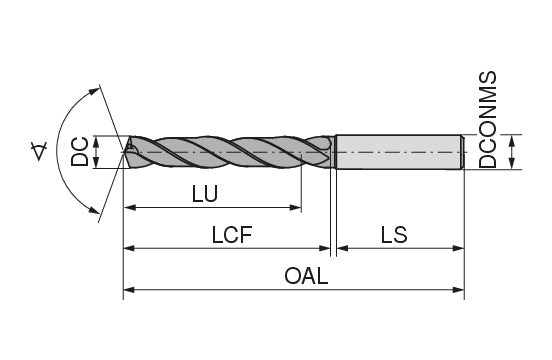

| Cutting diameter DC/d1 m7 | 0.3681 inch | 9.35 mm |
| Overall length OAL/l1 | 3.5039 inch | 89 mm |
| Length chip flute LCF/l2 | 1.8504 inch | 47 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.3937 inch | 10 mm |
| Shank length LS/l4 | 1.5748 inch | 40 mm |
| Usable length LU/l3 | 1.378 inch | 35 mm |
Application & Properties:
Suitable Materials:
