Ceratizit WTX-VA.15,50.R.3D.IK.HE TI700 SOLID CARBIDE TWIST DRILL 1073315500 (0662113)


Price:
Sale price$229.46
Stock:
Not in stock - Available to order

Description

WTX-VA.15,50.R.3D.IK.HE TI700 SOLID CARBIDE TWIST DRILL

Mat No: 1073315500, Article No: 10733155

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Solid Carbide Twist Drill

'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit WTX-VA.15,50.R.3D.IK.HE TI700 SOLID CARBIDE TWIST DRILL 1073315500 (0662113)
EDP # 0662113
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange)
Weight 7.9 oz 224 g

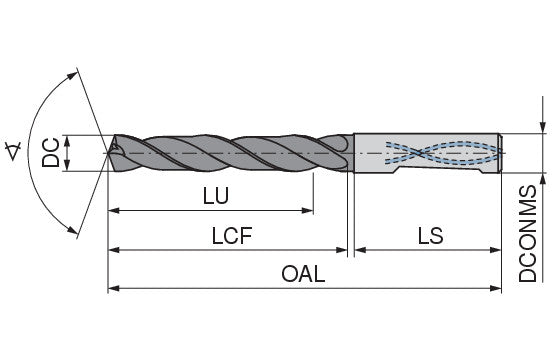

Cutting diameter DC/d1 m7 0.6102 inch 15.5 mm
Overall length OAL/l1 4.5276 inch 115 mm
Length chip flute LCF/l2 2.5591 inch 65 mm
Mounting spigot diameter DCONMS/d2 h6 0.6299 inch 16 mm
Shank length LS/l4 1.8898 inch 48 mm
Usable length LU/l3 1.7717 inch 45 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty image
