Description
WPC-VA.12,25.R.3D.IK.DIN6535.HA TIALN SOLID CARBIDE TWIST DRILL
Mat No: 1162312250, Article No: 1162312250
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
Solid Carbide Twist Drill
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WPC-VA.12,25.R.3D.IK.DIN6535.HA TIALN SOLID CARBIDE TWIST DRILL 1162312250 (0662130) | |
| EDP # | 0662130 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) | |
| Weight | 5.3 oz | 149 g |

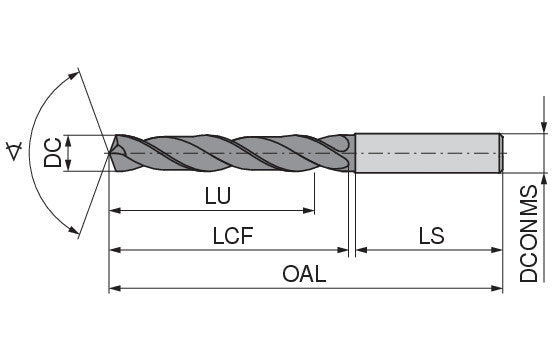

| Cutting diameter DC/d1 m7 | 0.4823 inch | 12.25 mm |
| Overall length OAL/l1 | 4.2126 inch | 107 mm |
| Length chip flute LCF/l2 | 2.3622 inch | 60 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.5512 inch | 14 mm |
| Shank length LS/l4 | 1.7717 inch | 45 mm |
| Usable length LU/l3 | 1.6929 inch | 43 mm |
Application & Properties:
Suitable Materials:
