Description

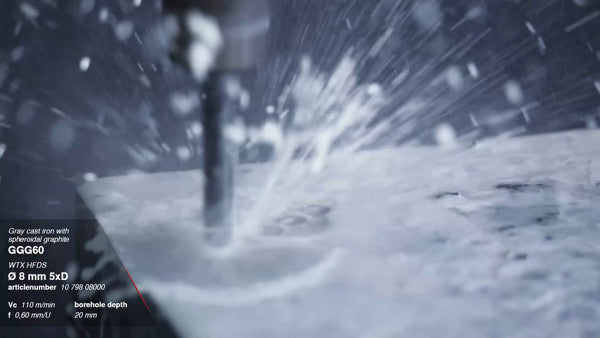

WTX-HFDS.8,3.R.5D.IK.HA DPX14S SOLID CARBIDE TWIST DRILL Four fluted high-feed drill Specialises in steel processing Has four spiral coolant holes Innovative cutting edge geometry guarantees high positioning accuracy Outstanding drilling quality in terms of tolerance, surface finish and position
Mat No: 1079808300, Article No: 1079808300
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
Solid Carbide Twist Drill
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WTX-HFDS.8,3.R.5D.IK.HA DPX14S SOLID CARBIDE TWIST DRILL 1079808300 (0662159) | |
| EDP # | 0662159 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Composites (Black) | |
| Weight | 0.0 oz | 0 g |
| Cutting diameter DC/d1 m7 | 0.3268 inch | 8.3 mm |
| Overall length OAL/l1 | 4.6457 inch | 118 mm |
| Length chip flute LCF/l2 | 2.7559 inch | 70 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.4724 inch | 12 mm |
| Shank length LS/l4 | 1.7717 inch | 45 mm |
| Usable length LU/l3 | 2.1654 inch | 55 mm |
Application & Properties:
Suitable Materials:
