Description
WTX-180°.8,6.R.3D.IK.HA TI800 SOLID CARBIDE TWIST DRILL universal application four guidance lands polished chip flutes Type ALU 3xD on request PL = corner chamfers
Mat No: 1072008600, Article No: 10720086
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT WTX-180°.8,6.R.3D.IK.HA TI800 SOLID CARBIDE TWIST DRILL 1072008600 (0662418) | |
| EDP # | 0662418 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 2.6 oz | 73.1 g |

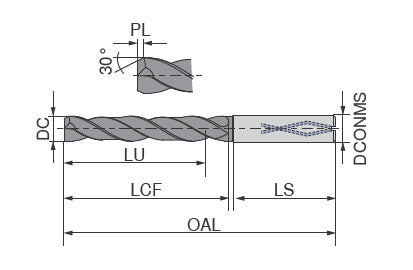

| Cutting diameter DC/d1 m7 | 0.3386 inch | 8.6 mm |
| Overall length OAL/l1 | 3.5039 inch | 89 mm |
| Length chip flute LCF/l2 | 1.8504 inch | 47 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.3937 inch | 10 mm |
| Shank length LS/l4 | 1.5748 inch | 40 mm |
| Usable length LU/l3 | 1.378 inch | 35 mm |
| Point length PL/K | 0.0169 inch | 0.43 mm |
Application & Properties:
Suitable Materials:
