WPC-VA.6,90.R.3D.IK.DIN6535.HB TIALN SOLID CARBIDE TWIST DRILL
Mat No: 1162406900, Article No: 11624069
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
|Name||CERATIZIT WPC-VA.6,90.R.3D.IK.DIN6535.HB TIALN SOLID CARBIDE TWIST DRILL 1162406900 (0662710)|
|Workpiece Material(s)||All Materials (White)|
|Weight||1.4 oz||39.2 g|

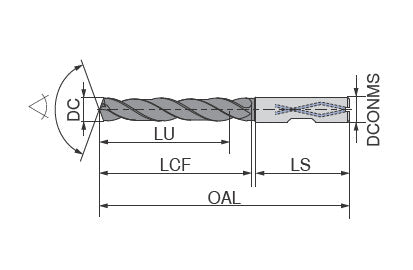

|Cutting diameter DC/d1 m7||0.2717 inch||6.9 mm|
|Overall length OAL/l1||3.1102 inch||79 mm|
|Length chip flute LCF/l2||1.3386 inch||34 mm|
|Mounting spigot diameter DCONMS/d2 h6||0.315 inch||8 mm|
|Shank length LS/l4||1.4173 inch||36 mm|
|Usable length LU/l3||0.9449 inch||24 mm|
Application & Properties:
