CERATIZIT WTX-VA.6,30.R.5D.HA TI700 SOLID CARBIDE TWIST DRILL 1074006300 (0662744)


Price:
Sale price$77.01
Stock:
Not in stock - Available to order

Description

WTX-VA.6,30.R.5D.HA TI700 SOLID CARBIDE TWIST DRILL

Mat No: 1074006300, Article No: 10740063

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT WTX-VA.6,30.R.5D.HA TI700 SOLID CARBIDE TWIST DRILL 1074006300 (0662744)
EDP # 0662744
Workpiece Material(s) All Materials (White)
Weight 1.5 oz 42.2 g

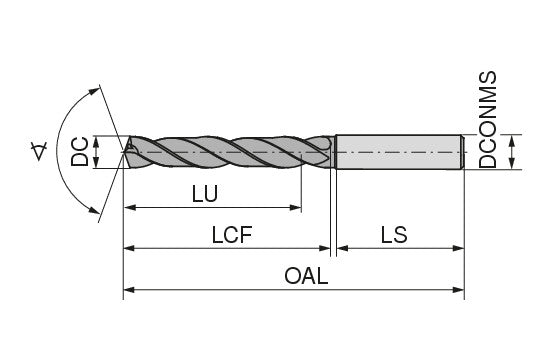

Flute count NOF 2
Cutting diameter DC/d1 m7 0.248 inch 6.3 mm
Overall length OAL/l1 3.5827 inch 91 mm
Length chip flute LCF/l2 2.0866 inch 53 mm
Mounting spigot diameter DCONMS/d2 h6 0.315 inch 8 mm
Shank length LS/l4 1.4173 inch 36 mm
Usable length LU/l3 1.6929 inch 43 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty image
,
