WTX-UNI.10,10.R.3D.IK.HE DPX74S SOLID CARBIDE TWIST DRILL
Mat No: 1177910100, Article No: 1177910100
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
|Name||CERATIZIT WTX-UNI.10,10.R.3D.IK.HE DPX74S SOLID CARBIDE TWIST DRILL 1177910100 (0664680)|
|Workpiece Material(s)||All Materials (White)|
|Weight||3.8 oz||108.3 g|
|Flute count NOF||2|

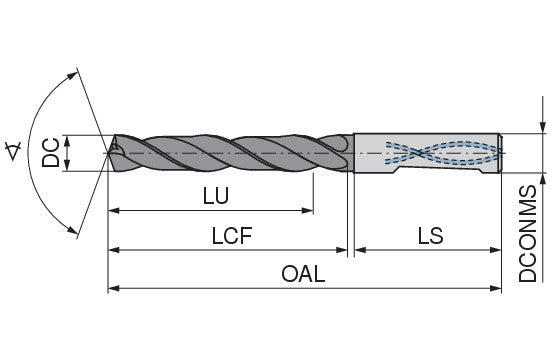

|Cutting diameter DC/d1 m7||0.3976 inch||10.1 mm|
|Overall length OAL/l1||4.0157 inch||102 mm|
|Length chip flute LCF/l2||2.1654 inch||55 mm|
|Mounting spigot diameter DCONMS/d2 h6||0.4724 inch||12 mm|
|Shank length LS/l4||1.7717 inch||45 mm|
|Usable length LU/l3||1.5748 inch||40 mm|
Application & Properties:
