CERATIZIT WTX-UNI.19,60.R.3D.IK.HB DPX74S SOLID CARBIDE TWIST DRILL 1178119600 (0665031)


Price:
Sale price$344.49
Stock:
Not in stock - Available to order

Description

WTX-UNI.19,60.R.3D.IK.HB DPX74S SOLID CARBIDE TWIST DRILL

Mat No: 1178119600, Article No: 1178119600

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT WTX-UNI.19,60.R.3D.IK.HB DPX74S SOLID CARBIDE TWIST DRILL 1178119600 (0665031)
EDP # 0665031
Workpiece Material(s) All Materials (White)
Weight 14.4 oz 407.2 g

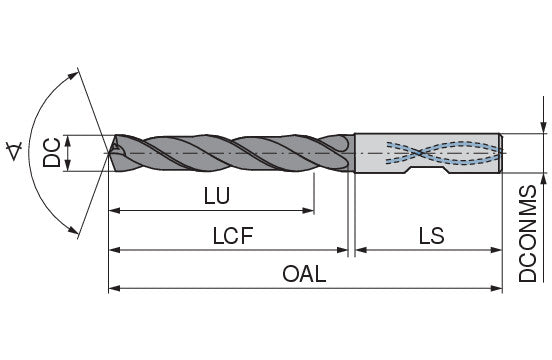

Cutting diameter DC/d1 m7 0.7717 inch 19.6 mm
Overall length OAL/l1 5.1575 inch 131 mm
Length chip flute LCF/l2 3.1102 inch 79 mm
Mounting spigot diameter DCONMS/d2 h6 0.7874 inch 20 mm
Shank length LS/l4 1.9685 inch 50 mm
Usable length LU/l3 2.1654 inch 55 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty image
,
