CERATIZIT WTX-SPEED-VA.3,0.R.12D.IK.HA TI800 SOLID CARBIDE TWIST DRILL 1077403000 (0665034)


Price:
Sale price$232.95
Stock:
Not in stock - Available to order

Description

WTX-SPEED-VA.3,0.R.12D.IK.HA TI800 SOLID CARBIDE TWIST DRILL For corrosion and acid-resistant steels Developed for high cutting speeds Three guide lands for low friction

Mat No: 1077403000, Article No: 1077403000

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT WTX-SPEED-VA.3,0.R.12D.IK.HA TI800 SOLID CARBIDE TWIST DRILL 1077403000 (0665034)
EDP # 0665034
Workpiece Material(s) All Materials (White)
Weight 0.0 oz 0.0 g

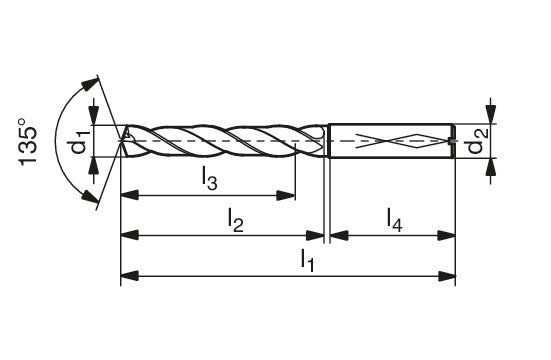

Cutting diameter DC/d1 m7 0.1181 inch 3 mm
Overall length OAL/l1 3.622 inch 92 mm
Length chip flute LCF/l2 2.126 inch 54 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm
Shank length LS/l4 1.4173 inch 36 mm
Usable length LU/l3 1.8898 inch 48 mm
Flute count NOF 2

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty image
,
