CERATIZIT WTX-SPEED-VA.4,9.R.12D.IK.HA TI800 SOLID CARBIDE TWIST DRILL 1077404900 (0665053)


Price:
Sale price$232.95
Stock:
Not in stock - Available to order

Description

WTX-SPEED-VA.4,9.R.12D.IK.HA TI800 SOLID CARBIDE TWIST DRILL For corrosion and acid-resistant steels Developed for high cutting speeds Three guide lands for low friction

Mat No: 1077404900, Article No: 1077404900

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT WTX-SPEED-VA.4,9.R.12D.IK.HA TI800 SOLID CARBIDE TWIST DRILL 1077404900 (0665053)
EDP # 0665053
Workpiece Material(s) All Materials (White)
Weight 0.0 oz 0.0 g

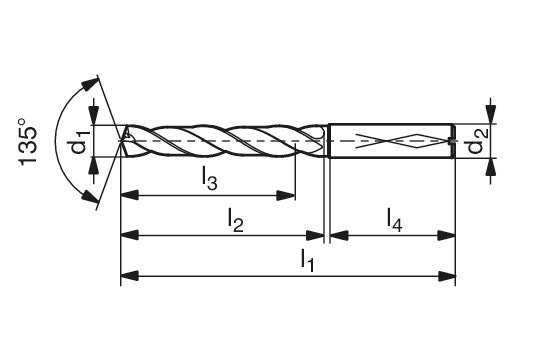

Cutting diameter DC/d1 m7 0.1929 inch 4.9 mm
Overall length OAL/l1 4.5669 inch 116 mm
Length chip flute LCF/l2 3.0709 inch 78 mm
Mounting spigot diameter DCONMS/d2 h6 0.2362 inch 6 mm
Shank length LS/l4 1.4173 inch 36 mm
Usable length LU/l3 2.7559 inch 70 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty image
,
