WTX-UNI.10,10.R.5D.IK.HE DPX74S SOLID CARBIDE TWIST DRILL Ød1m7 for Type UNI, VA and GG/ Ød1h7 for Type AL Ød2h5 for Type AL / Ød2h6 for Type UNI, VA, GG
Mat No: 1178510100, Article No: 1178510100
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
|Name||CERATIZIT WTX-UNI.10,10.R.5D.IK.HE DPX74S SOLID CARBIDE TWIST DRILL 1178510100 (0665172)|
|Workpiece Material(s)||All Materials (White)|
|Weight||4.1 oz||117.0 g|

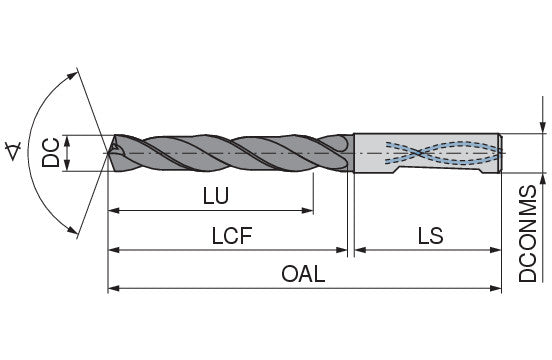

|Cutting diameter DC/d1 m7||0.3976 inch||10.1 mm|
|Overall length OAL/l1||4.6457 inch||118 mm|
|Length chip flute LCF/l2||2.7953 inch||71 mm|
|Mounting spigot diameter DCONMS/d2 h6||0.4724 inch||12 mm|
|Shank length LS/l4||1.7717 inch||45 mm|
|Usable length LU/l3||2.2047 inch||56 mm|
Application & Properties:
