WTX-AL.5,00.R.5D.IK.HA DLC SOLID CARBIDE TWIST DRILL Aluminium Drills
Mat No: W1205050360, Article No: 1079105000
This product comes in packages of 10
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

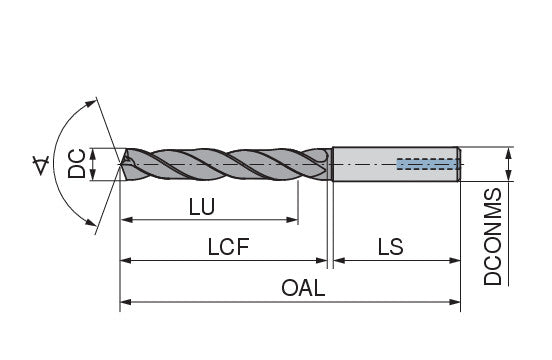

|Name||CERATIZIT WTX-AL.5,00.R.5D.IK.HA DLC SOLID CARBIDE TWIST DRILL W1205050360 (0665334)|
|Weight||0.9 oz||25.7 g|
|Cutting diameter DC h7||0.1969 inch||5 mm|
|Overall length OAL||3.2283 inch||82 mm|
|Length chip flute LCF||1.7323 inch||44 mm|
|Mounting spigot diameter DCONMS h6||0.2362 inch||6 mm|
|Shank length LS||1.4173 inch||36 mm|
|Usable length LU||1.378 inch||35 mm|
|Flute count NOF||2|
