Description
N.7,30.R.3D.DIN6539 SOLID CARBIDE TWIST DRILL Rake angle 30° Shank Ø h7
Mat No: W0118073200, Article No: 10700073
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT N.7,30.R.3D.DIN6539 SOLID CARBIDE TWIST DRILL W0118073200 (0668529) | |
| EDP # | 0668529 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 1.4 oz | 40.0 g |

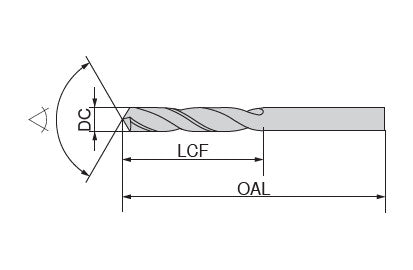

| Cutting diameter DC/d1 h7 | 0.2874 inch | 7.3 mm |
| Overall length OAL/l1 | 2.9134 inch | 74 mm |
| Length chip flute LCF/l2 | 1.3386 inch | 34 mm |
| Mounting spigot diameter DCONMS/d2 h7 | 0.2874 inch | 7.3 mm |
| Shank length LS/l4 | 1.5748 inch | 40 mm |
| Usable length LU/l3 | 0.8622 inch | 21.9 mm |
Application & Properties:
Suitable Materials:
