Description
N.5,30.R.5D.DIN6539 SOLID CARBIDE TWIST DRILL Rake angle 30° Shank Ø h7
Mat No: W0120053300, Article No: 10710053
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT N.5,30.R.5D.DIN6539 SOLID CARBIDE TWIST DRILL W0120053300 (0668540) | |
| EDP # | 0668540 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.6 oz | 18.0 g |

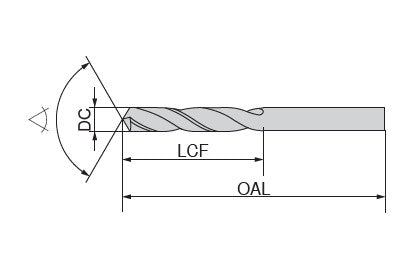

| Cutting diameter DC/d1 h7 | 0.2087 inch | 5.3 mm |
| Overall length OAL/l1 | 3.3858 inch | 86 mm |
| Length chip flute LCF/l2 | 2.0472 inch | 52 mm |
| Mounting spigot diameter DCONMS/d2 h7 | 0.2087 inch | 5.3 mm |
| Shank length LS/l4 | 1.3386 inch | 34 mm |
| Usable length LU/l3 | 1.0433 inch | 26.5 mm |
Application & Properties:
Suitable Materials:
