CERATIZIT ISO: N.4,30.R.5D.DIN6539 ANSI: 1A0120-04300.H7.5XD.118.R02.HA.B270 SOLID CARBIDE TWIST DRILL W0120043300 (0668549)


Price:
Sale price$26.25
Stock:
Not in stock - Available to order

Description

ISO: N.4,30.R.5D.DIN6539 ANSI: 1A0120-04300.h7.5XD.118.R02.HA.B270 SOLID CARBIDE TWIST DRILL Rake angle 30° Shank Ø h7

Mat No: W0120043300, Article No: 10710043

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT ISO: N.4,30.R.5D.DIN6539 ANSI: 1A0120-04300.H7.5XD.118.R02.HA.B270 SOLID CARBIDE TWIST DRILL W0120043300 (0668549)
EDP # 0668549
Workpiece Material(s) All Materials (White)
Weight 0.0 oz 0.0 g

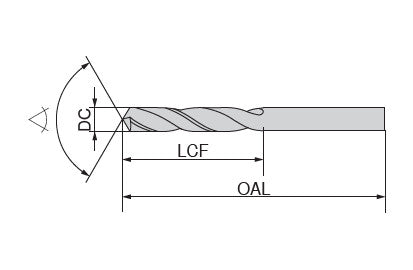

Cutting diameter DC/d1 h7 0.1693 inch 4.3 mm
Overall length OAL/l1 3.1496 inch 80 mm
Length chip flute LCF/l2 1.8504 inch 47 mm
Mounting spigot diameter DCONMS/d2 h7 0.1693 inch 4.3 mm
Shank length LS/l4 1.2992 inch 33 mm
Usable length LU/l3 0.8465 inch 21.5 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty image
,
