Description
WTX-MINI.1,49.R.5D.~HA TiAIN SOLID CARBIDE TWIST DRILL standard shank Ø 3 mm h6 for use in heat shrink adapters
Mat No: W1190014940, Article No: 1177001490
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

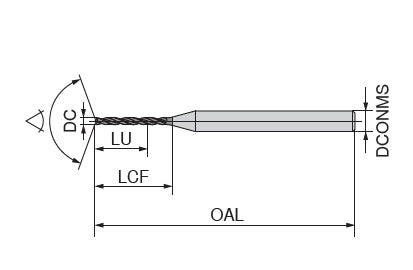

| Properties | ||
|---|---|---|
| Name | CERATIZIT WTX-MINI.1,49.R.5D.~HA TIAIN SOLID CARBIDE TWIST DRILL W1190014940 (0668637) | |
| EDP # | 0668637 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.1 oz | 4.0 g |
| Cutting diameter DC/d1 +0.004 | 0.0587 inch | 1.49 mm |
| Overall length OAL/l1 | 1.4961 inch | 38 mm |
| Length chip flute LCF/l2 | 0.4134 inch | 10.5 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.1181 inch | 3 mm |
| Shank length LS/l4 | 0.9803 inch | 24.9 mm |
| Usable length LU/l3 | 0.315 inch | 8 mm |
Application & Properties:
Suitable Materials:
