WTX-H.2,60.R.3D.HA DPX64U SOLID CARBIDE TWIST DRILL Special cutting edge geometry Special flute geometry Special core diameter 46 - 70 HRC
Mat No: 12309995, Article No: 1077702600
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
|Name||CERATIZIT WTX-H.2,60.R.3D.HA DPX64U SOLID CARBIDE TWIST DRILL 12309995 (0668644)|
|Workpiece Material(s)||All Materials (White)|
|Weight||0.2 oz||6.9 g|

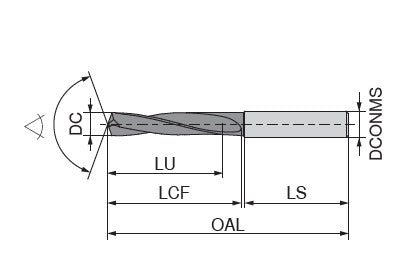

|Cutting diameter DC/d1 h7||0.1024 inch||2.6 mm|
|Overall length OAL/l1||2.1654 inch||55 mm|
|Length chip flute LCF/l2||0.7874 inch||20 mm|
|Mounting spigot diameter DCONMS/d2 h6||0.1575 inch||4 mm|
|Shank length LS/l4||1.1024 inch||28 mm|
|Usable length LU/l3||0.3071 inch||7.8 mm|
Application & Properties:
