Description
The 'Purple' line of tooling is designed specifically for cutting wrought titanium alloys.
The 'Feeder' line is designed for aggressive feed-mill roughing. This line of cutting tools is not designed to produce finish surfaces, but rather to achieve maximum material removal rates using the entire face of the tool and a relatively shallow depth of cut per pass combined with high feed rates and a special profile which takes advantage of axial chip thinning.
'F' form tools are intended for feed-milling; shallow cutting at high feed. They have back-relieved flanks and are not intended to be used to cut past their widest point.
| Tool Properties | ||
|---|---|---|

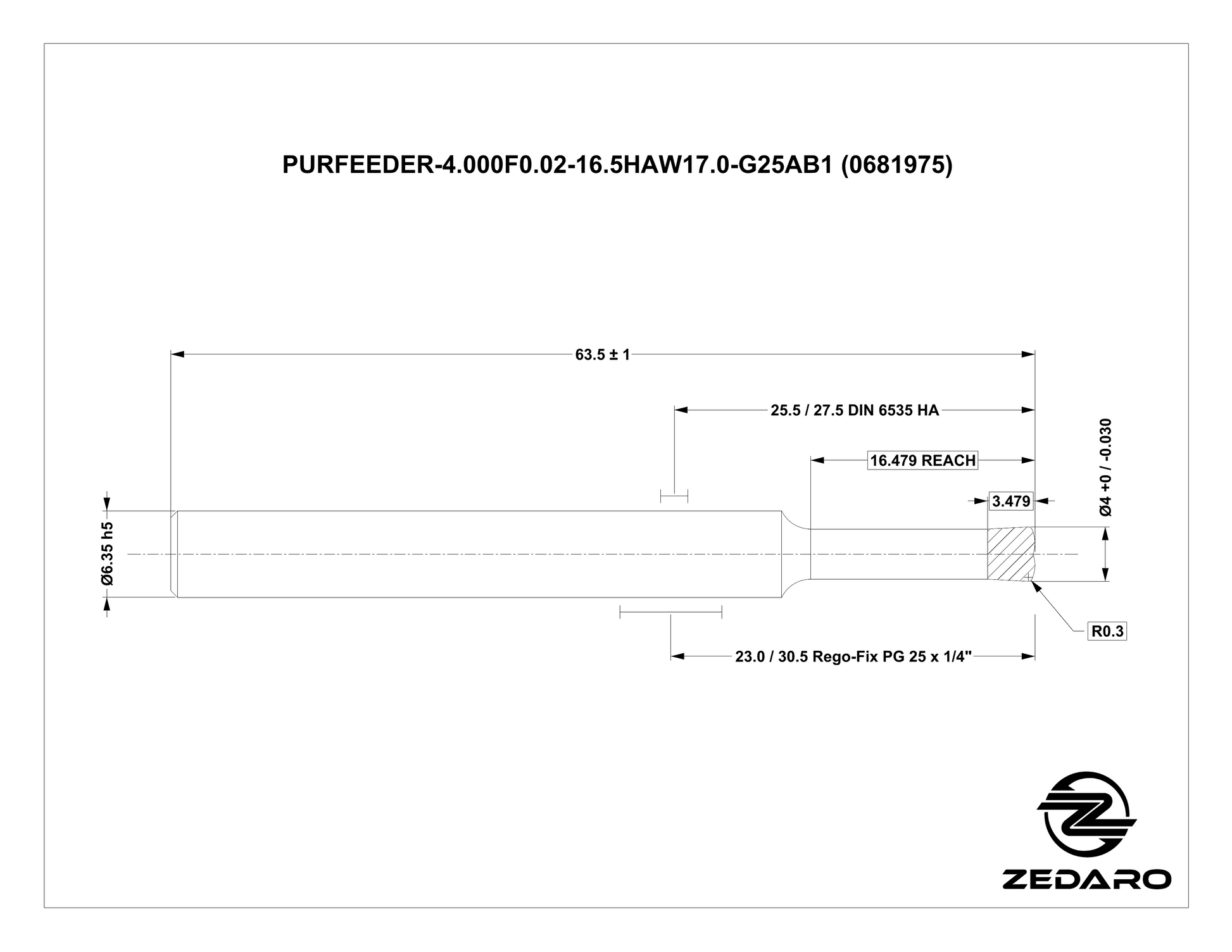

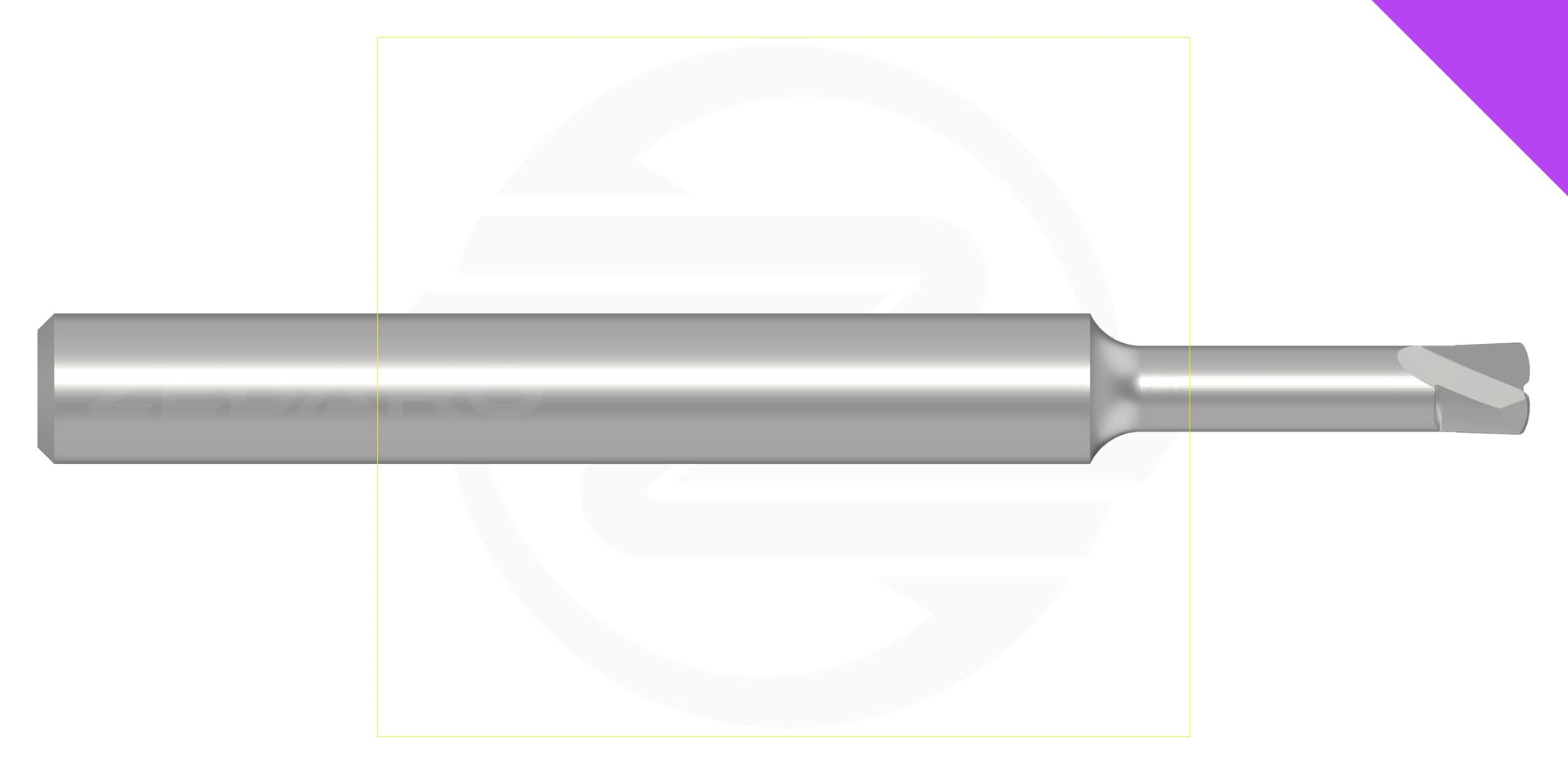

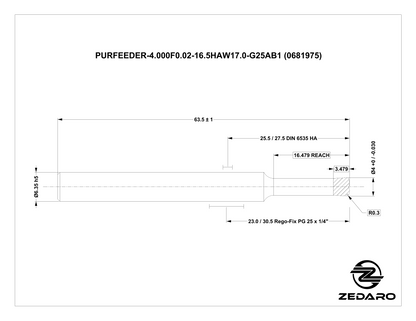

| Name | PURFEEDER-4.000F0.02-16.5HAW17.0-G25AB1 | |
| EDP # | 0681975 | |
| Material | Titanium | Application | Rough Feed Millling (Feeder) |
| Form | Feedmill | |
| Cutting Diameter | 0.1575" | 4.000 mm |
| Equivalent Corner Rad | 0.0008" | 0.020 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.0118" | 0.300 mm |
| Reach | 0.6496" | 16.500 mm |
| Minimum Extension | 0.7" | 17.0 mm |
| Maximum Extension | 2.1" | 54.0 mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 2.5" | 63 mm |
| Cutting Edges | 2 | |
| Tolerance Class | h9 | |
| Cutting Parameters - Feed Milling | ||
| Coolant | Low Pressure | |
| Tool Extension (Stickout) | 1.0039" | 25.500 mm |
| Step Over (Radial, Ae) | 0.1417" | 3.600 mm |
| Step Down (Axial, Ap) | 0.0008" | 0.020 mm |
| Spindle Speed (S) | 17600 RPM | |
| Feed Rate (F) | 59 in/min | 1500 mm/min |
| Cutting Speed (Vc) | 726 ft/min | 221 m/min |
