Description
Ceratizit Article Number: 5002228024
Ceratizit Material Number: 14210230
Ceratizit Komet Number (Unpacked): 37130099008000
Ceratizit Komet Number (Packed): 37130099008000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit PCD Milling Ring HPC 80 Z24 ICR 5002228024 | |
| EDP # | 0682162 | |
| Weight (1 pc.) | 11.0 oz | 326 g |

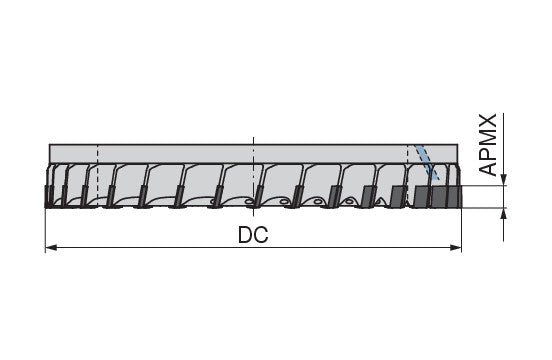

| Cutting diameter / DC | 3.1496" | 80.000 mm |
| Depth of cut maximum / APMX | 0.1969" | 5.000 mm |
| Face mounted insert count / ZNF | 24 | |
| Base holder | GH.A.80,0.27 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
