Description
Ceratizit Article Number: 5002604057
Ceratizit Material Number: 12541799
Ceratizit Komet Number (Unpacked): 37150026004000
Ceratizit Komet Number (Packed): 37150026004000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

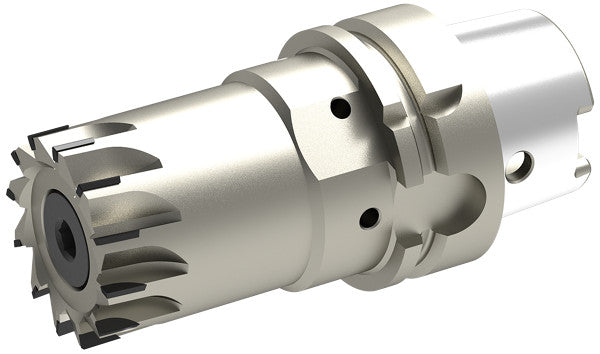

| Name | Ceratizit PCD FACE MILLING CUTTER 40 Z10 IKZ HSK-A Face Milling monoblock Cutter 5002604057 | |
| EDP # | 0682164 | |
| Weight (1 pc.) | 53.0 oz | 1505 g |

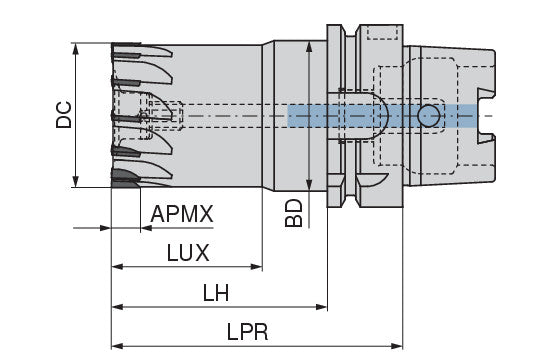

| Cutting diameter / DC | 1.5748" | 40.000 mm |
| Face mounted insert count / ZNF | 10 | |
| Protruding length / LPR | 3.9370" | 100.000 mm |
| Head length / LH | 2.9134" | 74.000 mm |
| Usable length maximum / LUX | 1.8898" | 48.000 mm |
| Designation | MPF.40,0.Z10.F.L100.IK.HSK63 PKD | |
| Neck diameter (BD) / BD | 2.0866" | 53.000 mm |
| Machine interface size | HSK-A 63 | |
| Depth of cut maximum / APMX | 0.3937" | 10.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
