Description
Ceratizit Article Number: 5001601000
Ceratizit Material Number: 12541825
Ceratizit Komet Number (Unpacked): 37340099001000
Ceratizit Komet Number (Packed): 37340099001000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit PCD SLOT-MILLING CUTTER 10,0 NZ2 IK Drilling Slot Screw-in Cutter 5001601000 | |
| EDP # | 0682188 | |
| Weight (1 pc.) | 1.0 oz | 21.0 g |

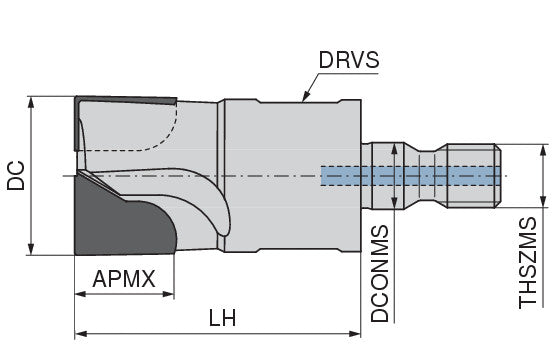

| Cutting diameter / DC | 0.3937" | 10.000 mm |
| Depth of cut maximum / APMX | 0.3937" | 10.000 mm |
| Neck Diameter / DN | 0.3780" | 9.600 mm |
| Protruding length / LPR | 1.1024" | 28.000 mm |
| Mounting spigot diameter / DCONMS | 0.2165" | 5.500 mm |
| Connection thread nominal size / THSZMS | M5 | |
| Drive size / DRVS | 0.3150" | 8.000 mm |
| Corner chamfer width / CHW | 0.0079" | 0.200 mm |
| Peripheral effective cutting edge count / ZEFP | 2 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
