Ceratizit PCD Face-milling Cutter 12,0 NZ2 IK CoreLine Screw-in Cutters W 5001801200 (0682194)
Ceratizit PCD Face-milling Cutter 12,0 NZ2 IK CoreLine Screw-in Cutters W 5001801200 (0682194)
Couldn't load pickup availability
Ceratizit Article Number: 5001801200
Ceratizit Material Number: 14414472
Ceratizit Komet Number (Unpacked): 37341099001200
Ceratizit Komet Number (Packed): 37341099001200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit PCD Face-milling Cutter 12,0 NZ2 IK CoreLine Screw-in Cutters W 5001801200 | |
| EDP # | 0682194 | |
| Weight (1 pc.) | 1.0 oz | 26.4 g |
| Machining process - Main Application | Slot milling | |

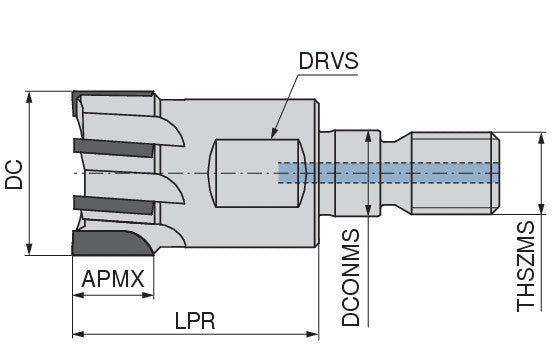

| Cutting diameter / DC | 0.4724" | 12.000 mm |
| Depth of cut maximum / APMX | 0.1969" | 5.000 mm |
| Neck Diameter / DN | 0.3780" | 9.600 mm |
| Protruding length / LPR | 1.1024" | 28.000 mm |
| Mounting spigot diameter / DCONMS | 0.2165" | 5.500 mm |
| Connection thread nominal size / THSZMS | M5 | |
| Drive size / DRVS | 0.3150" | 8.000 mm |
| Corner chamfer width / CHW | 0.0079" | 0.200 mm |
| Peripheral effective cutting edge count / ZEFP | 2.0000" | 50.800 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
