Description
Ceratizit Article Number: 5001510200
Ceratizit Material Number: 12541844
Ceratizit Komet Number (Unpacked): 38320001001000
Ceratizit Komet Number (Packed): 38320001001000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

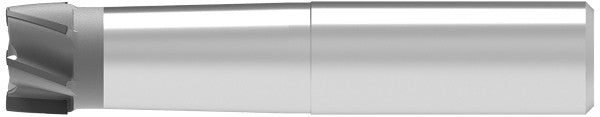

| Name | Ceratizit WN.SA.10,0.20°.Z4.HA.L67.IK_PKD PCD End Mill 5001510200 | |
| EDP # | 0682202 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 3.0 oz | 73.4 g |

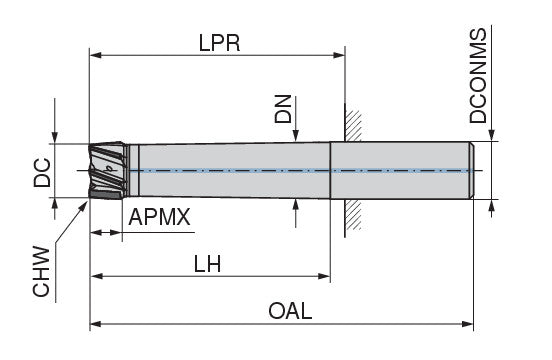

| Cutting diameter / DC | 0.3937" | 10.000 mm |
| Depth of cut maximum / APMX | 0.1969" | 5.000 mm |
| Neck Diameter / DN | 0.3780" | 9.600 mm |
| Head length / LH | 0.9843" | 25.000 mm |
| Corner chamfer width / CHW | 0.0079" | 0.200 mm |
| Protruding length / LPR | 1.0630" | 27.000 mm |
| Overall length / OAL | 2.6378" | 67.000 mm |
| Mounting spigot diameter / DCONMS | 0.3937" | 10.000 mm |
| Peripheral effective cutting edge count / ZEFP | 4 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
