Description
Ceratizit Article Number: 5052516150
Ceratizit Material Number: 12542334
Ceratizit Komet Number (Unpacked): 80802007001150
Ceratizit Komet Number (Packed): 80802007001150
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

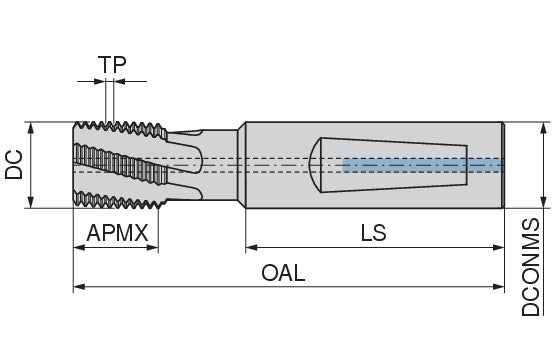

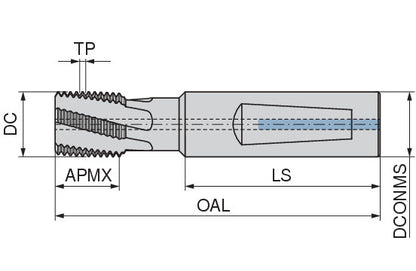

| Properties | ||
|---|---|---|
| Name | Ceratizit GWF 20X20XM1,50 SR MonoThread - TOMILL - Thread Milling Cutter 5052516150 | |
| EDP # | 0682237 | |
| Weight (1 pc.) | 12.0 oz | 352 g |
| Thread pitch / TP | 0.0591" | 1.500 mm |
| Cutting diameter / DC | 0.7874" | 20.000 mm |
| Depth of cut maximum / APMX | 0.8268" | 21.000 mm |
| Shank length / LS | 1.9685" | 50.000 mm |
| Overall length / OAL | 3.6220" | 92.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.7874" | 20.000 mm |
| Peripheral effective cutting edge count / ZEFP | 5 | |
| Minimum bore diameter / DMIN | 1.1811" | 30.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
