Ceratizit GWF 20X32XM2,00 SR TICN MonoThread - Shank Thread Milling Cutter - SGF TOMILL 5052620210 (0682249)
Ceratizit GWF 20X32XM2,00 SR TICN MonoThread - Shank Thread Milling Cutter - SGF TOMILL 5052620210 (0682249)
Couldn't load pickup availability
Ceratizit Article Number: 5052620210
Ceratizit Material Number: 12542381
Ceratizit Komet Number (Unpacked): 80842008001200
Ceratizit Komet Number (Packed): 80842008001200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

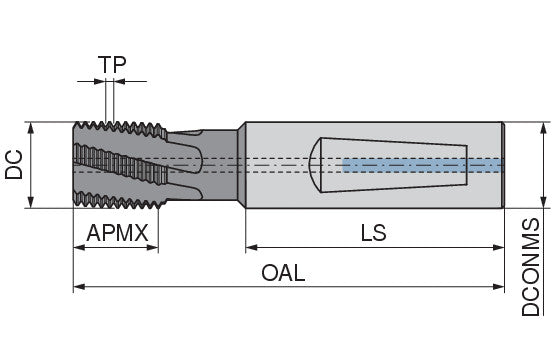

| Properties | ||
|---|---|---|
| Name | Ceratizit GWF 20X32XM2,00 SR TICN MonoThread - Shank Thread Milling Cutter - SGF TOMILL 5052620210 | |
| EDP # | 0682249 | |
| Weight (1 pc.) | 14.0 oz | 383 g |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | Internal thread, right / left | |
| Thread pitch / TP | 0.0787" | 2.000 mm |
| Cutting diameter / DC | 0.7874" | 20.000 mm |
| Depth of cut maximum / APMX | 1.2598" | 32.000 mm |
| Shank length / LS | 1.9685" | 50.000 mm |
| Overall length / OAL | 4.1339" | 105.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.7874" | 20.000 mm |
| Peripheral effective cutting edge count / ZEFP | 5.0000" | 127.000 mm |
| Minimum bore diameter / DMIN | 1.1811" | 30.000 mm |
| Coating name / Grade (Ceratizit) / COATN | TiCN | |
| Minimum Extension (DIN 6535 HA) | 2.0866" - 2.1654" | 53.000 - 55.000 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
