Ceratizit GWF 20X32XG11 SR TICN MonoThread - Shank Thread Milling Cutter - SGF TOMILL 5052920110 (0682250)
Ceratizit GWF 20X32XG11 SR TICN MonoThread - Shank Thread Milling Cutter - SGF TOMILL 5052920110 (0682250)
Couldn't load pickup availability
Ceratizit Article Number: 5052920110
Ceratizit Material Number: 12542383
Ceratizit Komet Number (Unpacked): 80842008002011
Ceratizit Komet Number (Packed): 80842008002011
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

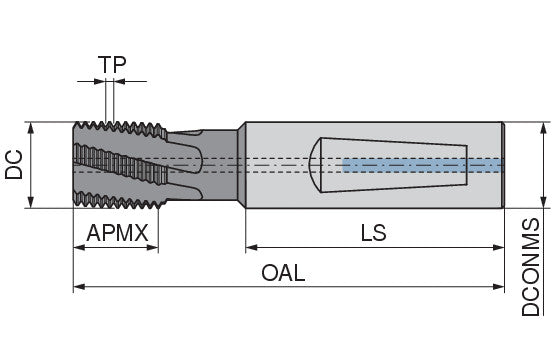

| Properties | ||
|---|---|---|
| Name | Ceratizit GWF 20X32XG11 SR TICN MonoThread - Shank Thread Milling Cutter - SGF TOMILL 5052920110 | |
| EDP # | 0682250 | |
| Weight (1 pc.) | 13.0 oz | 375 g |
| Machining process - Main Application | External and internal thread, right / left | |
| Cutting diameter / DC | 0.7874" | 20.000 mm |
| Depth of cut maximum / APMX | 1.2717" | 32.300 mm |
| Shank length / LS | 1.9685" | 50.000 mm |
| Overall length / OAL | 4.1339" | 105.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.7874" | 20.000 mm |
| Peripheral effective cutting edge count / ZEFP | 5.0000" | 127.000 mm |
| Minimum bore diameter / DMIN | 1.2008" | 30.500 mm |
| Coating name / Grade (Ceratizit) / COATN | TiCN | |
| Minimum Extension (DIN 6535 HA) | 2.0866" - 2.1654" | 53.000 - 55.000 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
