Description
Ceratizit Article Number: 5053806000
Ceratizit Material Number: 12542479
Ceratizit Komet Number (Unpacked): 80941051000018
Ceratizit Komet Number (Packed): 80941051000018
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

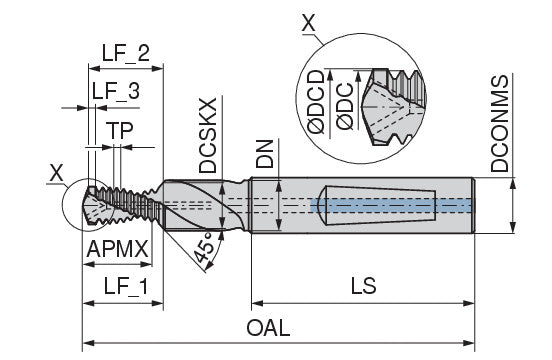

| Properties | ||
|---|---|---|
| Name | Ceratizit BGF EGM6 2,0D IK; MonoThread - Drill Thread Milling Cutter With Chamfer Facet 5053806000 | |
| EDP # | 0682255 | |
| Weight (1 pc.) | 2.0 oz | 60.0 g |
| Thread | EG-M6 | |
| Thread pitch / TP | 0.0394" | 1.000 mm |
| Cutting diameter / DC | 0.2354" | 5.980 mm |
| Depth of cut maximum / APMX | 0.5276" | 13.400 mm |
| Shank length / LS | 1.5748" | 40.000 mm |
| Overall length / OAL | 2.9134" | 74.000 mm |
| Neck Diameter / DN | 0.3543" | 9.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.3937" | 10.000 mm |
| Countersunk diameter, max / DCSKX | 0.2992" | 7.600 mm |
| Peripheral effective cutting edge count / ZEFP | 2 | |
| Functional length 3 / LF_3 | 0.0394" | 1.000 mm |
| Functional length 2 / LF_2 | 0.6220" | 15.800 mm |
| Functional length 1 / LF_1 | 0.6614" | 16.800 mm |
| Cutting diameter drilling part / DCD | 0.2480" | 6.300 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
