Description
Ceratizit Article Number: 5080608000
Ceratizit Material Number: 12542775
Ceratizit Komet Number (Unpacked): 88296001000020
Ceratizit Komet Number (Packed): 88296001000020
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

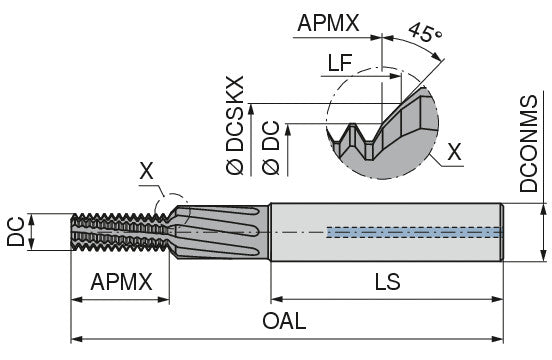

| Properties | ||
|---|---|---|
| Name | Ceratizit MGF M8 2,0D HPC IK ALCRN NZ7 MonoThread - Thread Milling Cutter With Chamfer Facet 5080608000 | |
| EDP # | 0682269 | |
| Weight (1 pc.) | 2.0 oz | 62.8 g |
| Thread | M8 | |
| Thread pitch / TP | 0.0492" | 1.250 mm |
| Cutting diameter / DC | 0.2449" | 6.220 mm |
| Depth of cut maximum / APMX | 0.6535" | 16.600 mm |
| Shank length / LS | 1.5748" | 40.000 mm |
| Overall length / OAL | 2.9134" | 74.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.3937" | 10.000 mm |
| Countersunk diameter, max / DCSKX | 0.3268" | 8.300 mm |
| Functional length / LF | 0.7008" | 17.800 mm |
| Peripheral effective cutting edge count / ZEFP | 7 | |
| Premachined hole diameter / PHD | 0.2677" | 6.800 mm |
| Coating name / Grade (Ceratizit) / COATN | AlCrN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
