Description
Ceratizit Article Number: 5054810000
Ceratizit Material Number: 12542793
Ceratizit Komet Number (Unpacked): 88297001000022
Ceratizit Komet Number (Packed): 88297001000022
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

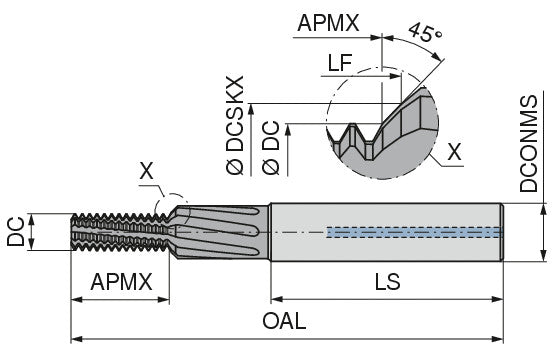

| Name | Ceratizit MGF M10 1,5D HPC IK ALCRN NZ7 MonoThread - Thread Milling Cutter With Chamfer Facet 5054810000 | |
| EDP # | 0682283 | |
| Weight (1 pc.) | 3.0 oz | 93.0 g |
| Thread | M10 | |
| Thread pitch / TP | 0.0591" | 1.500 mm |
| Cutting diameter / DC | 0.3067" | 7.790 mm |
| Depth of cut maximum / APMX | 0.6614" | 16.800 mm |
| Shank length / LS | 1.7717" | 45.000 mm |
| Overall length / OAL | 2.9331" | 74.500 mm |
| Neck Diameter / DN | 0.4331" | 11.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.4724" | 12.000 mm |
| Countersunk diameter, max / DCSKX | 0.4055" | 10.300 mm |
| Peripheral effective cutting edge count / ZEFP | 7 | |
| Cutting diameter drilling part / DCD | 0.3346" | 8.500 mm |
| Coating name / Grade (Ceratizit) / COATN | AlCrN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
