Description
Ceratizit Article Number: 5054906000
Ceratizit Material Number: 12542799
Ceratizit Komet Number (Unpacked): 88297002000048
Ceratizit Komet Number (Packed): 88297002000048
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

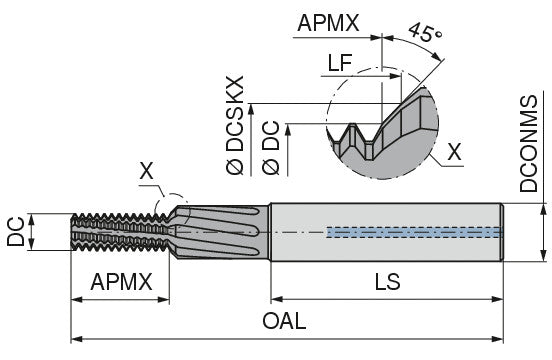

| Name | Ceratizit MGF M6X0,75 1,5D HPC IK ALCRN NZ6 MonoThread - Thread Milling Cutter With Chamfer Facet 5054906000 | |
| EDP # | 0682284 | |
| Weight (1 pc.) | 6.0 oz | 162 g |
| Thread | M6x0,75 | |
| Thread pitch / TP | 0.0295" | 0.750 mm |
| Cutting diameter / DC | 0.1843" | 4.680 mm |
| Depth of cut maximum / APMX | 0.3937" | 10.000 mm |
| Shank length / LS | 1.4173" | 36.000 mm |
| Overall length / OAL | 2.3228" | 59.000 mm |
| Neck Diameter / DN | 0.2598" | 6.600 mm |
| Mounting spigot diameter / DCONMS h6 | 0.3150" | 8.000 mm |
| Countersunk diameter, max / DCSKX | 0.2480" | 6.300 mm |
| Peripheral effective cutting edge count / ZEFP | 6 | |
| Cutting diameter drilling part / DCD | 0.2087" | 5.300 mm |
| Coating name / Grade (Ceratizit) / COATN | AlCrN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
