Description
Ceratizit Article Number: 5085404000
Ceratizit Material Number: 12543081
Ceratizit Komet Number (Unpacked): 88935001000015
Ceratizit Komet Number (Packed): 88935001000015
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

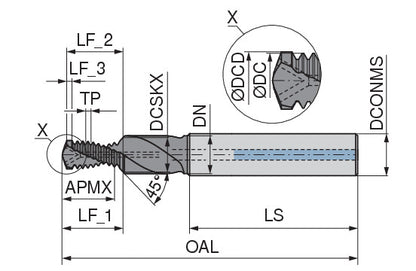

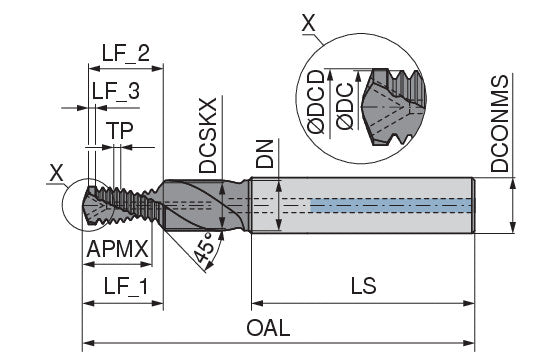

| Properties | ||
|---|---|---|
| Name | Ceratizit BGF M4 2,0D IK TiAlN; MonoThread - Drill Thread Milling Cutter With Chamfer Facet 5085404000 | |
| EDP # | 0682296 | |
| Weight (1 pc.) | 1.0 oz | 20.0 g |
| Thread | M4 | |
| Thread pitch / TP | 0.0276" | 0.700 mm |
| Cutting diameter / DC | 0.1276" | 3.240 mm |
| Depth of cut maximum / APMX | 0.2874" | 7.300 mm |
| Shank length / LS | 1.4173" | 36.000 mm |
| Overall length / OAL | 1.9291" | 49.000 mm |
| Neck Diameter / DN | 0.1772" | 4.500 mm |
| Mounting spigot diameter / DCONMS h6 | 0.2362" | 6.000 mm |
| Countersunk diameter, max / DCSKX | 0.1693" | 4.300 mm |
| Peripheral effective cutting edge count / ZEFP | 2 | |
| Functional length 3 / LF_3 | 0.0276" | 0.700 mm |
| Functional length 2 / LF_2 | 0.3504" | 8.900 mm |
| Functional length 1 / LF_1 | 0.3701" | 9.400 mm |
| Cutting diameter drilling part / DCD | 0.1299" | 3.300 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti601 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
