Description
Ceratizit Article Number: 5085416000
Ceratizit Material Number: 12543088
Ceratizit Komet Number (Unpacked): 88935001000026
Ceratizit Komet Number (Packed): 88935001000026
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

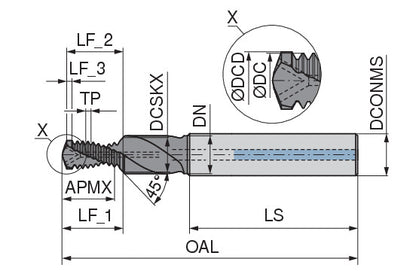

| Name | Ceratizit BGF M16 2,0D IK TiAlN; MonoThread - Drill Thread Milling Cutter With Chamfer Facet 5085416000 | |
| EDP # | 0682303 | |
| Weight (1 pc.) | 9.0 oz | 253 g |
| Thread | M16 | |
| Thread pitch / TP | 0.0787" | 2.000 mm |
| Cutting diameter / DC | 0.5228" | 13.280 mm |
| Depth of cut maximum / APMX | 1.2047" | 30.600 mm |
| Shank length / LS | 1.8898" | 48.000 mm |
| Overall length / OAL | 4.0157" | 102.000 mm |
| Neck Diameter / DN | 0.6890" | 17.500 mm |
| Mounting spigot diameter / DCONMS h6 | 0.7087" | 18.000 mm |
| Countersunk diameter, max / DCSKX | 0.6417" | 16.300 mm |
| Peripheral effective cutting edge count / ZEFP | 2 | |
| Functional length 3 / LF_3 | 0.0591" | 1.500 mm |
| Functional length 2 / LF_2 | 1.3780" | 35.000 mm |
| Functional length 1 / LF_1 | 1.4606" | 37.100 mm |
| Cutting diameter drilling part / DCD | 0.5512" | 14.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti601 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
