Description
Ceratizit Article Number: 2247106000
Ceratizit Material Number: 12543392
Ceratizit Komet Number (Unpacked): 90456001000018
Ceratizit Komet Number (Packed): 90456001000018
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SP MG CM6-6HX GG IK HML TAP Through Hole-blind Hole Machine taps, Right-hand With Carbide Strips 2247106000 | |
| EDP # | 0682344 | |
| Weight (1 pc.) | 1.0 oz | 17.0 g |

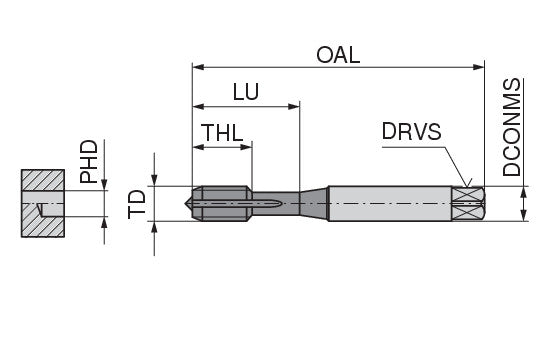

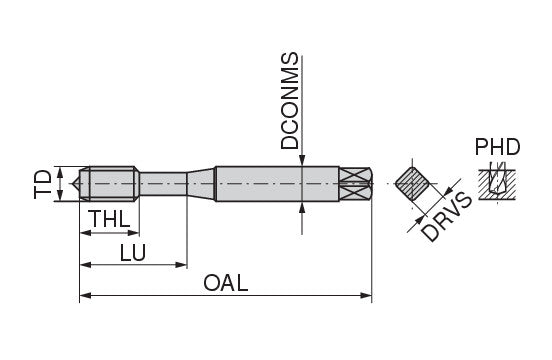

| Thread diameter range / TD | 0.2362" | 6.000 mm |
| Overall length / OAL | 3.1496" | 80.000 mm |
| Mounting spigot diameter / DCONMS | 0.2362" | 6.000 mm |
| Drive size / DRVS | 0.1929" | 4.900 mm |
| Premachined hole diameter / PHD | 0.1969" | 5.000 mm |
| Thread cutting part length / THL | 0.7087" | 18.000 mm |
| Usable length / LU | 1.1811" | 30.000 mm |
| Thread pitch / TP | 0.0394" | 1.000 mm |
| Thread form type / THFT | M | |
| Thread tolerance class / TCTR | ISO 2X 6HX | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
