Description
Ceratizit Article Number: 2247412000
Ceratizit Material Number: 12543413
Ceratizit Komet Number (Unpacked): 90775002000113
Ceratizit Komet Number (Packed): 90775002000113
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

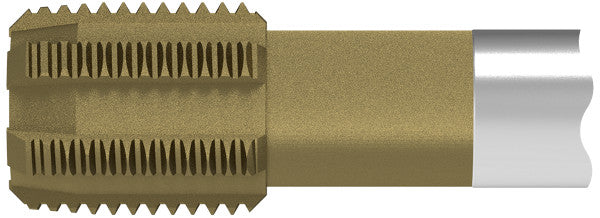

| Name | Ceratizit GF CM12X1,5-6HX MOREX R IK TIN Through Hole-blind Hole Machine Thread formers, Right-hand With Carbide Strips 2247412000 | |
| EDP # | 0682351 | |
| Weight (1 pc.) | 2.0 oz | 55.0 g |

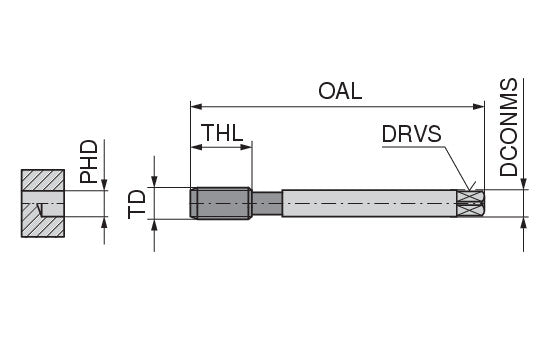

| Thread diameter range / TD | 4.7835" | 121.500 mm |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Mounting spigot diameter / DCONMS | 0.3543" | 9.000 mm |
| Drive size / DRVS | 0.2756" | 7.000 mm |
| Premachined hole diameter / PHD | 0.4469" | 11.350 mm |
| Thread cutting part length / THL | 0.5118" | 13.000 mm |
| Thread pitch / TP | 0.0591" | 1.500 mm |
| Thread form type / THFT | MF | |
| Thread tolerance class / TCTR | ISO 2X 6HX | |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
