Description
Ceratizit Article Number: 7146730002
Ceratizit Material Number: 11813337
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

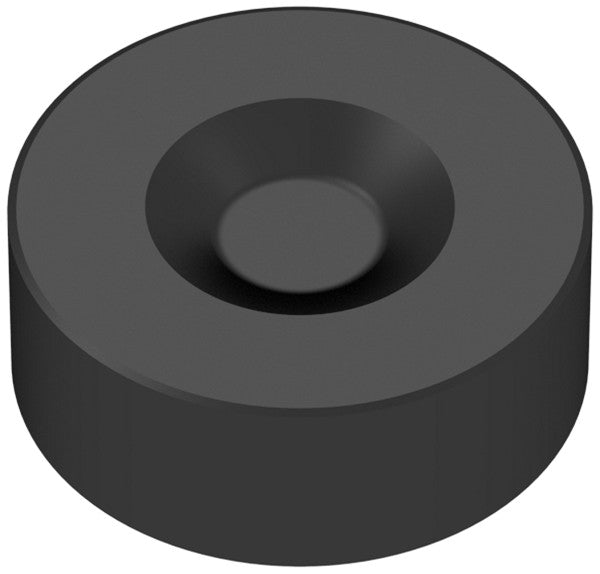

| Name | Ceratizit RNGX 120400TN-020D-C CTBK102 CoreLine PcBN Turning indexable Insert RNGX-C 7146730002 | |
| EDP # | 0682357 | |
| Weight (1 pc.) | 0.2 oz | 6.2 g |
| designation | 120400TN | |
| Cutting edge length / L | 0.5000" | 12.700 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 43TN | ||
| support chamfer angle / GB | 20 ° | |
| Face land width / BN | 0.0079" | 0.200 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBK102 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
