Zedaro PURFEEDER-3.000F0.03-13.0HUM16.0-G25AB1 (0682365)
Zedaro PURFEEDER-3.000F0.03-13.0HUM16.0-G25AB1 (0682365)
Couldn't load pickup availability
Zedaro UID: 0682365
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

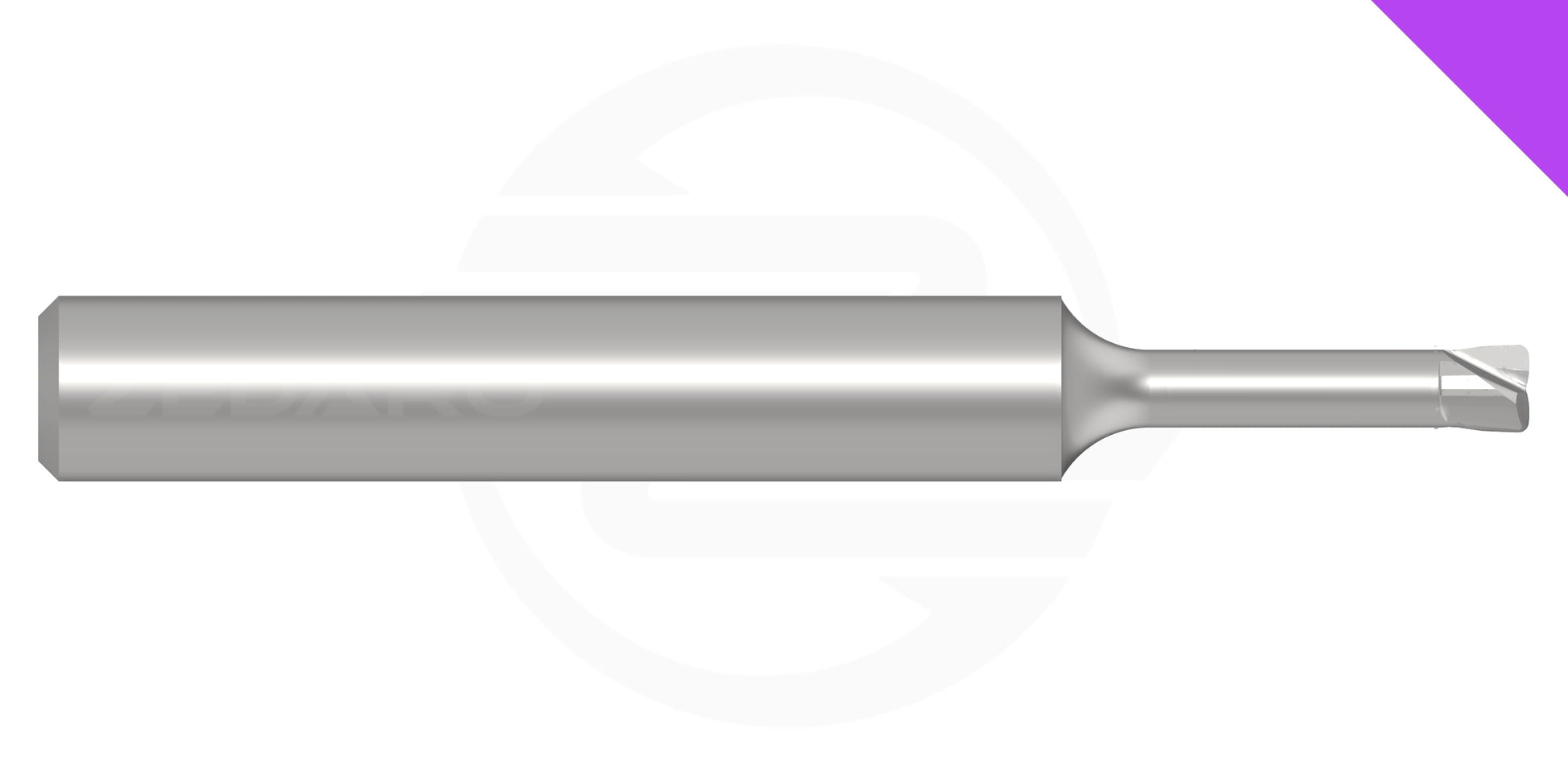

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro PURFEEDER-3.000F0.03-13.0HUM16.0-G25AB1 | |
| EDP # | 0682365 | |
| Workpiece Material(s) | Titanium (Purple) | |
| Weight (1 pc.) | 1.0 oz | 31.0 g |
| Cutting Diameter | 0.1181" | 3.000 mm |
| Equivalent Corner Rad | 0.0012" | 0.030 mm |
| Application | Rough Feed Millling (Feeder) | |
| Form | Feedmill | |
| Shank Diameter (h6) | 0.2500" | 6.350 mm |
| Cutting Edges | 2 | |
| Tolerance Class | h9 | |
| Length of Cut | 0.0142" | 0.360 mm |
| Overall Length | 2.5000" | 63.500 mm |
| Reach | 0.5118" | 13.000 mm |
| Minimum Extension | 0.6299" | 16.000 mm |
| Maximum Extension | 2.0000" | 50.800 mm |
Product Features:
- The 'Purple' line of tooling is designed specifically for cutting wrought titanium alloys.
- The 'Feeder' line is designed for aggressive feed-mill roughing. This line of cutting tools is not designed to produce finish surfaces, but rather to achieve maximum material removal rates using the entire face of the tool and a relatively shallow depth of cut per pass combined with high feed rates and a special profile which takes advantage of axial chip thinning.
- 'F' form tools are intended for feed-milling; shallow cutting at high feed. They have back-relieved flanks and are not intended to be used to cut past their widest point.
- The code 'HUM' refers to the bird species 'Hummingbird'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
| Cutting Parameters - Feed Milling @10.2K | ||
| Coolant | Low Pressure | |
| Tool Extension (Stickout) | 1.0000" | 25.400 mm |
| Step Over (Radial, Ae) | 0.0906" | 2.300 mm |
| Step Down (Axial, Ap) | 0.0059" | 0.150 mm |
| Spindle Speed (S) | 10200 RPM | |
| Feed Rate (F) | 49 in/min | 1250 mm/min |
| Cutting Speed (Vc) | 315 ft/min | 96 m/min |
