Description
Ceratizit Article Number: 6287005389
Ceratizit Material Number: 12566544
Ceratizit Komet Number (Unpacked): G01 71022
Ceratizit Komet Number (Packed): G0171022
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

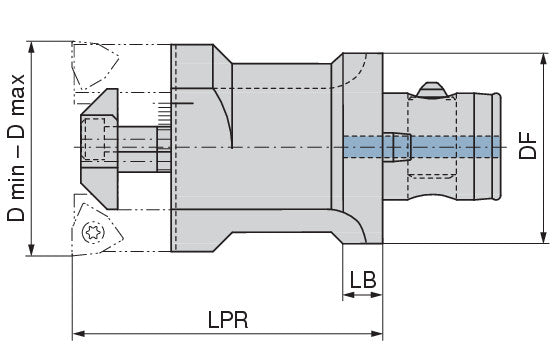

| Properties | ||
|---|---|---|

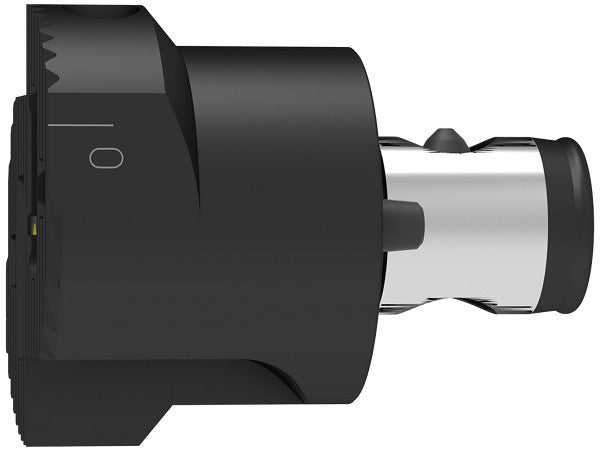

| Name | Ceratizit BASIC ELEMENT ABS32 Ø39-53MM L=60MM KOMET TwinKom Base Body 6287005389 | |
| EDP # | 0704857 | |
| Weight (1 pc.) | 13.0 oz | 369 g |
| Dmin - Dmax | 0.3543" - 2.0866" | 9.000 - 53.000 mm |
| Machine interface size | ABS 32 | |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Flange diameter / DF | 1.2598" | 32.000 mm |
| Protruding length / LPR | 2.3622" | 60.000 mm |
| nominal size / SZID | ABS 32 | |
| Shank length / LS | 0.9055" | 23.000 mm |
| Neck diameter (BD) / BD | 1.4567" | 37.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
