Description
Mapal Order Number: 31153055
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.

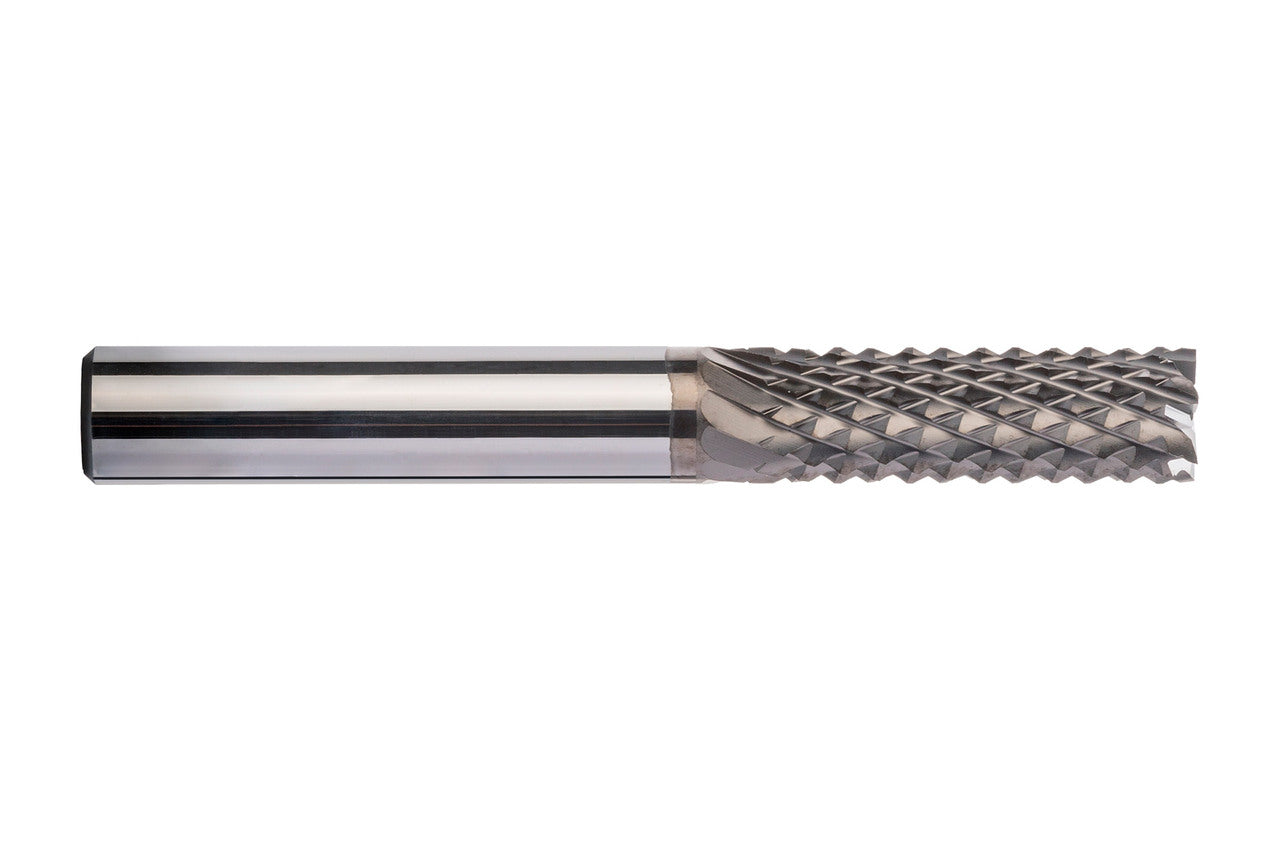

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Mapal SCM106-0500ZMVR-HA-HC117 OptiMill®-Graphite-MT 31153055 | |
| EDP # | 0705834 | |
| Product Class | Expert-Line | |
| Diameter (d1) | 0.1969" | 5.000 mm |
| Shaft Diameter (d2) | 0.2362" | 6.000 mm |
| Total Length (l1) | 2.2441" | 57.000 mm |
| Length Of Cutting Edge (l2) | 0.6299" | 16.000 mm |
| Number Of Cutting Edges (z) | 8 | |
| Cooling | External Cooling | |
| Shank Type | HA | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 0.7480" - 0.8268" | 19.000 - 21.000 mm |
Product Features:
- The OptiMill®-Graphite-MT multi-tooth milling cutter was specially developed for roughing graphite electrodes. The MAPAL multi-tooth cutter is particularly suitable for very high stock removal rates thanks to its diamond coating and up to 16 cutting edges.
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
