Description
The 'Yellow' line of tooling is designed specifically for cutting stainless steel alloys.
'H' form tools are intended for reaming; where they cannot generate a hole or cut laterally but use their lead-in and flank to improve pre-existing hole quality.
| Tool Properties | ||
|---|---|---|
| Name | YELSIPPER-8.010H0.50-15.0ELA30.0-J35CG1 (0707649) | |
| EDP # | 0707649 | |
| Material | Stainless Steel | Application | () |

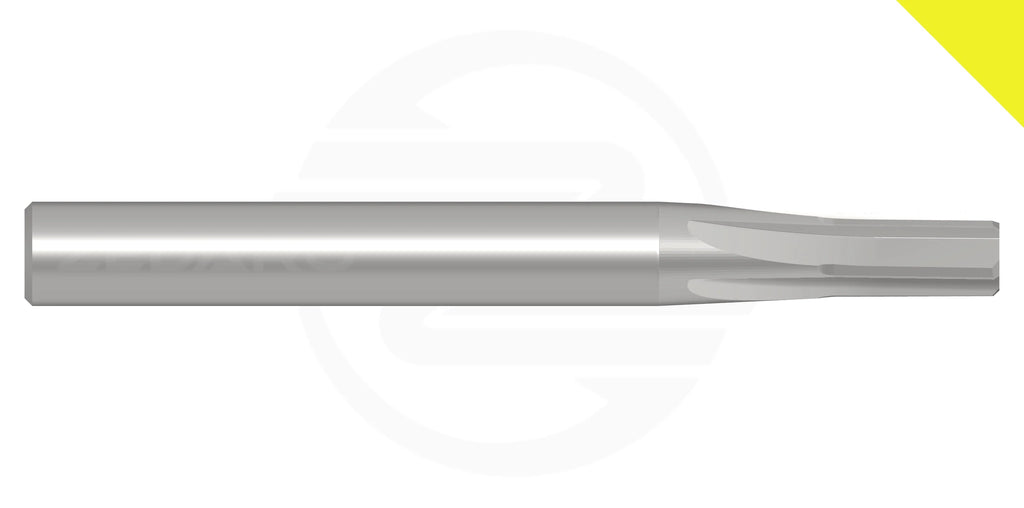

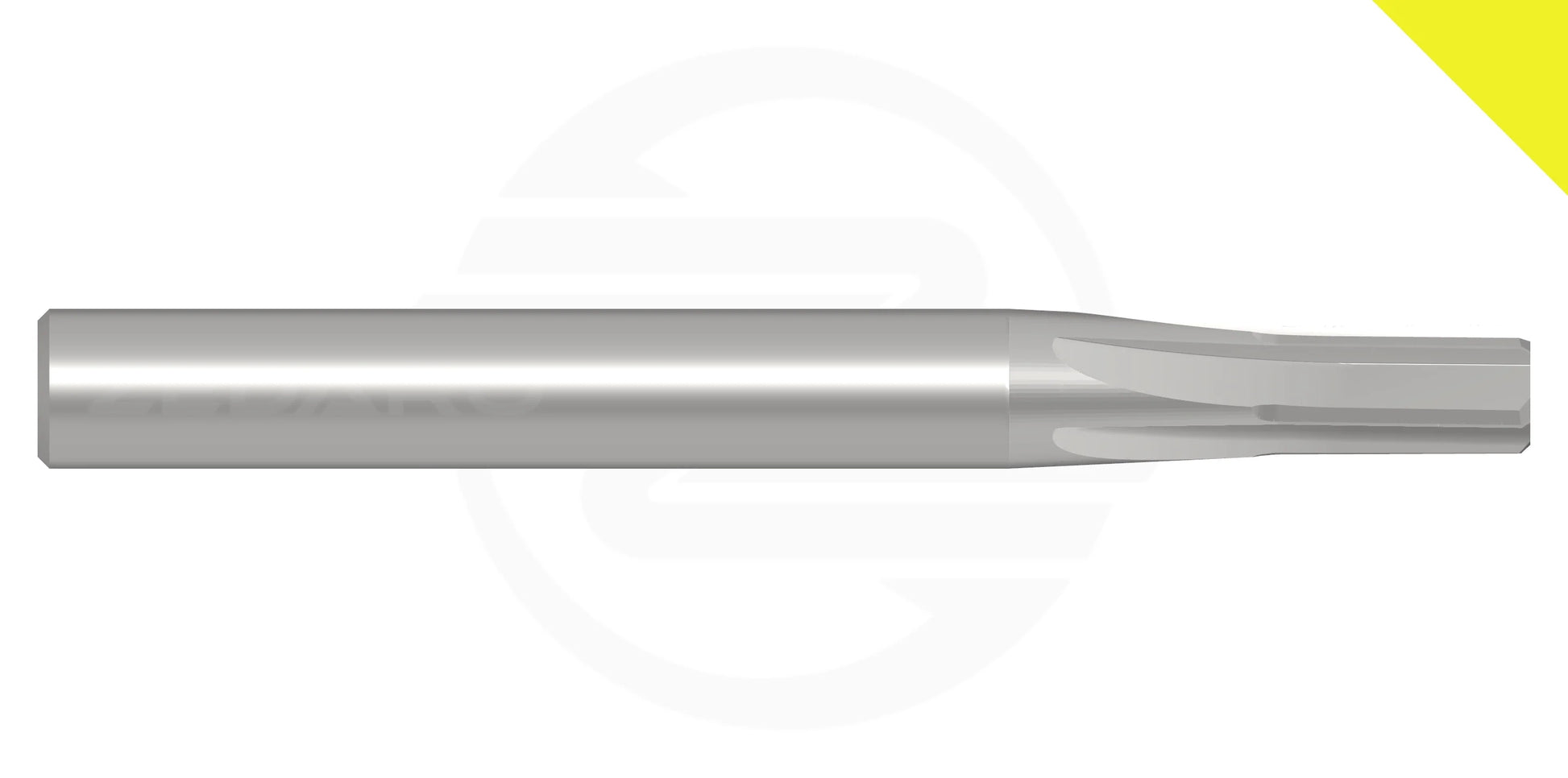

| Form | Straight Reamer | |
| Cutting Diameter | 0.3154" | 8.010 mm |
| Tip Offset | 0.0197" | 0.500 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.5906" | 15.000 mm |
| Reach | 0.5906" | 15.000 mm |
| Minimum Extension | 1.2" | 30.0 mm |
| Maximum Extension | 2.9" | 74.6 mm |
| Shank Diameter h6 | 0.3750" | 9.525 mm |
| Overall Length | 3.5" | 89 mm |
| Cutting Edges | 5 | |
